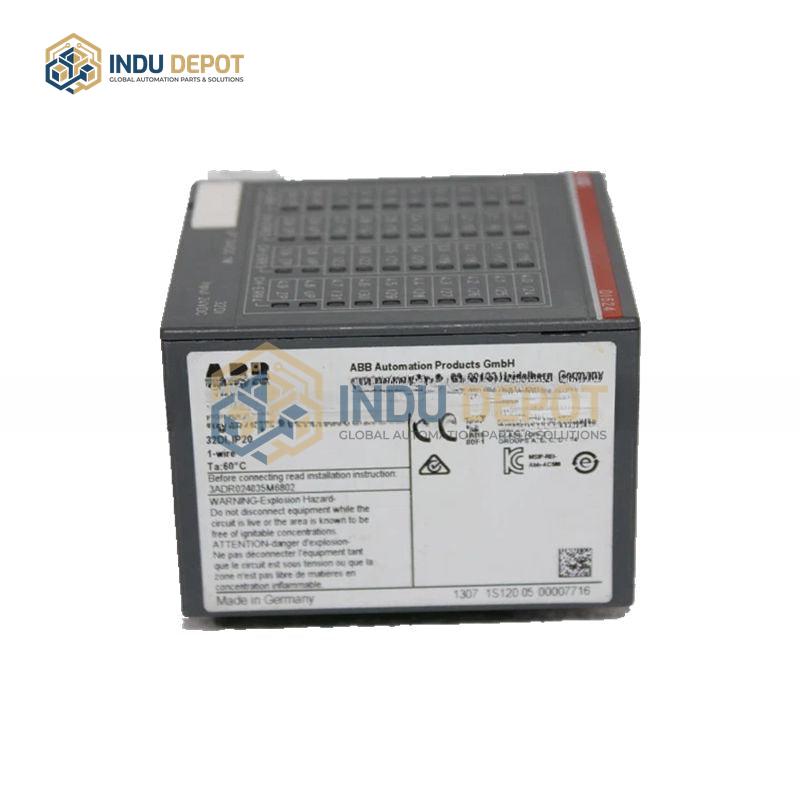

ABB DI524 – Digital Input Module
Description
ABB DI524 Digital Input Module is a high-performance digital input module designed for industrial automation systems, providing reliable signal acquisition and seamless integration with control networks.
| Specification | Value |
|---|---|
| Input Channels | 16 channels, expandable to 32 channels; supports dry contacts, PNP/NPN transistor inputs |
| Response Time | 1 ms or less (typical) |
| Isolation Voltage | 2500 VAC (channel to system isolation) |
| Operating Voltage | 24 V DC (±10%) |
| Communication Protocols | Modbus TCP, Profinet, optional EtherCAT |
| Data Rate | 100 Mbps (full duplex) |
| Operating Temperature Range | -40 to 70 degrees Celsius |
| Humidity Range | 5% RH to 95% RH (no condensation) |
Key Features:
- Integrated over-voltage protection, short-circuit protection, and hardware interrupt trigger mechanism
- Configurable channel parameters including filter time and signal thresholds via ABB Control Builder software
- Built-in LED indicators for real-time channel status and fault monitoring
- Complies with IEC 60068-2-6 vibration resistance standards for harsh industrial environments
Applications:
- High-speed production line real-time control systems
- Process control in mining, cement production, and automotive manufacturing facilities
- Energy management and industrial automation signal acquisition networks
Related Models:
- ABB DI524 1SAP240000R0001
- ABB 1SAP800400R0010
- ACS510 series compatible modules
