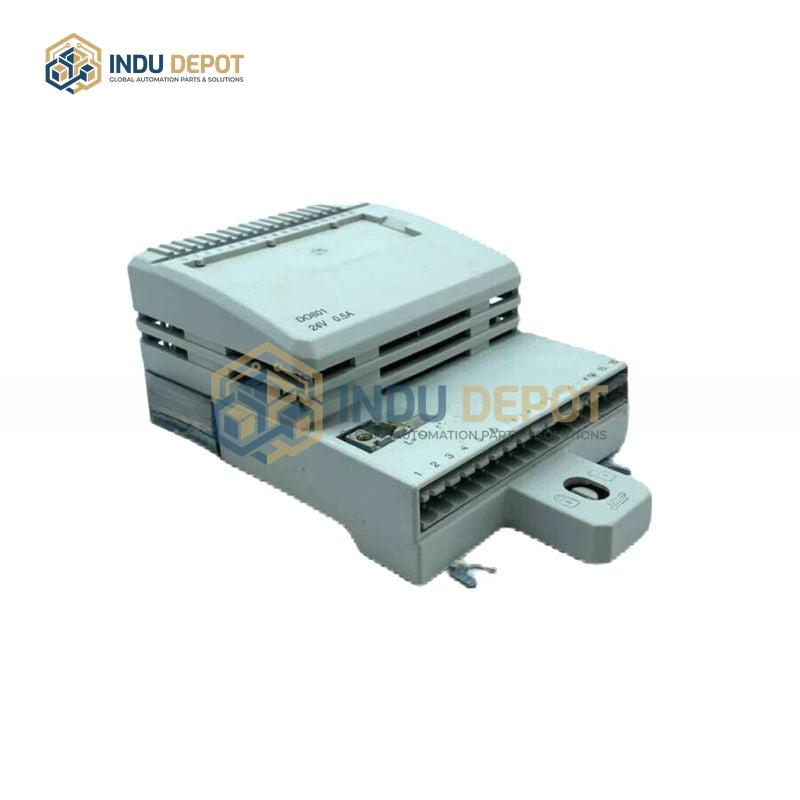

ABB DO801 I/O Module Process Control Component
Description
ABB DO801 Digital Output Module is a digital output component belonging to the ABB S800 I/O and AC500 PLC product series, designed specifically for industrial automation and process control applications. It converts digital control signals from PLC systems into actionable switch signals to drive external actuators, providing a reliable interface between control systems and field devices.
| Specification | Value |
|---|---|
| Number of Output Channels | 8 or 16 (varies by configuration) |
| Output Type | 24V DC 0.5A (standard), 120V AC 0.5A, or transistor/relay output (varies by version) |
| Output Signal Type | Binary, on/off |
| Isolation | 2500V AC channel-to-bus and channel-to-channel isolation |
| Operating Temperature Range | -20 to 60 degrees Celsius |
| Storage Temperature Range | -40 to 85 degrees Celsius |
| Installation | DIN rail mounting |
| Dimensions | Approximately 120mm x 80mm x 60-70mm (varies by version) |
Key Features:
- Equipped with LED status indicators for each output channel for quick state monitoring and troubleshooting
- Built-in short circuit, overvoltage, and overheating protection to enhance module durability
- Supports screw or spring terminal connectors for easy and secure installation
- Fast response time: 1ms for transistor output, 10ms for relay output
- Compliant with CE, UL, and other industry standards
Applications:
- Manufacturing production lines for controlling conveyors, valves, and pneumatic cylinders
- Power industry for operating switchgear and status indicator lights
- Industrial robot systems for controlling auxiliary fixtures and material handling equipment
- Building automation for managing lighting and HVAC system components
Related Models:
- ABB DO802 Digital Output Module
- ABB DO810 Digital Output Module
- ABB DO811 Digital Output Module
