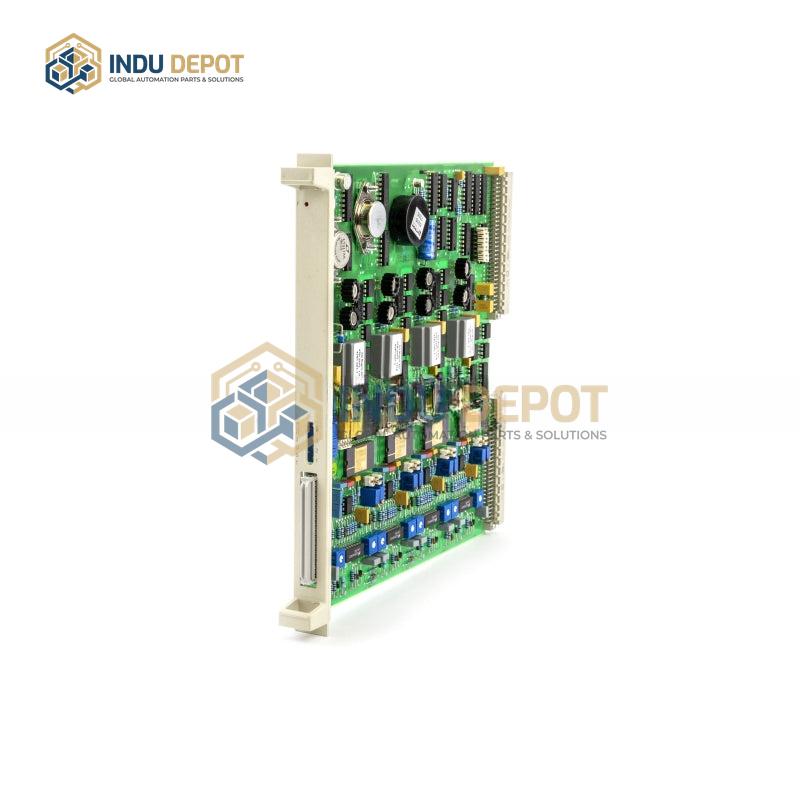

ABB DSAO 110 Analog Output Module
Description
ABB DSAO 110 Analog Output Module is a high-performance module designed for integration with ABB industrial automation control systems. It converts digital signals to analog output signals in current or voltage form to control external devices and actuators, delivering precise, reliable performance for automated processes.
| Specification | Value |
|---|---|
| Input/Output Channels | 16 digital channels, configurable as input or output |
| Signal Types | Dry contact, PNP/NPN level signals |
| Response Time | ≤0.1ms (typical) |
| Isolation Voltage | 1500V AC (channel-to-channel, channel-to-ground) |
| Operating Temperature | -40 to 85 degrees Celsius |
| Protection Rating | IP65 (stainless steel housing) |
| Communication Interface | RS485, supports Modbus-RTU protocol |
| Input Voltage Range | 24V DC ±10% |
| Output Voltage Range | 0 to 10V DC |
| Dimensions | 100mm x 80mm x 30mm |
Key Features:
- High-resolution, high-precision analog output for accurate device control and regulation
- Multiple independently configurable channels to control multiple devices simultaneously, boosting system flexibility and efficiency
- Fast response time for real-time process adjustments
- IP65-rated stainless steel housing for durability in harsh industrial environments
- Supports Modbus-RTU protocol for seamless integration with control systems
Applications:
- Motor control and variable frequency speed regulation in metallurgy and manufacturing
- Valve positioning and flow adjustment in petrochemical processing
- Safety interlock and fault diagnosis in power generation systems
- Robot coordinated control in automotive production workstations
- Tension control and process regulation in paper manufacturing
Related Models:
- ABB DSAO 115
- ABB DSAO 120
- ABB DSAO 130
