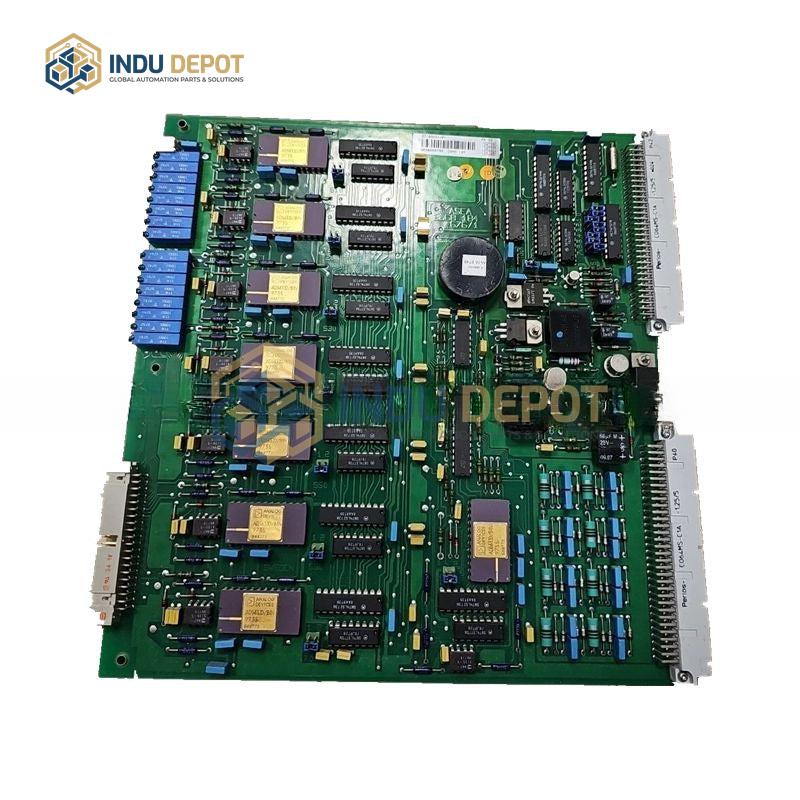

ABB DSAO120 Precision Control Board for DCS Systems
Description
ABB DSAO120 Precision Control Board for DCS Systems is a high-performance analog output module designed for distributed control systems (DCS), converting digital signals to precise analog outputs for industrial device control.
| Specification | Value |
|---|---|
| Output Channel Count | 8 or 16 (varies by model variant) |
| Output Signals | 4-20mA, 0-20mA, 0-10V, ±5V (configurable per channel) |
| Output Resolution | 12 to 16 bits |
| Typical Output Accuracy | ±0.1% of span |
| Isolation Rating | Up to 500 V AC RMS between channels, field and system sides |
| Operating Temperature Range | 0 to 60 degrees Celsius; -20 to 70 degrees Celsius (select variants) |
| Protection Rating | IP20 |
| Communication Protocols | HART, Profibus DP, FOUNDATION Fieldbus (varies by model) |
Key Features:
- Per-channel independent configuration for voltage or current outputs to meet diverse control needs
- Enhanced isolation blocks ground loops and surges, reducing controller damage risk in harsh industrial environments
- Hot-swappable design supports online module replacement without disrupting system operation
- Built-in self-diagnosis and open-circuit detection for proactive fault reporting and prevention of actuator runaway
- Complies with IEC 61000-4, CE, UL, and CSA electromagnetic compatibility and safety standards
Applications:
- Process control in petrochemical, power, and metallurgy industries for regulating temperature, pressure, and flow
- Automated equipment control for valve positioning, motor speed adjustment, and heater power regulation
- Building automation for HVAC system energy optimization and comfort control
- Test and measurement as a stable analog signal source for sensor calibration and device testing
Related Models:
- DSAO120AK01 (3BSE020419R1)
- DSAO120A (3BSE018293R1)
- DSAO120
