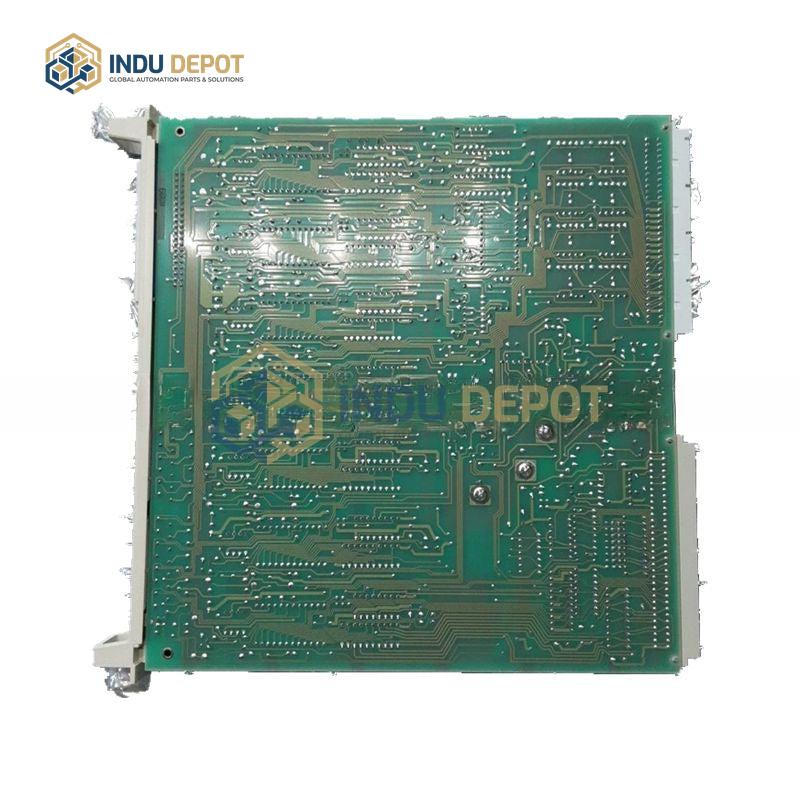

ABB DSAO130A Analog Input Board for Industrial Control Systems
Description
ABB DSAO130A Analog Input/Output Board is an industrial automation control module designed for industrial control systems, enabling conversion between analog and digital signals to support precise industrial process control.
| Specification | Value |
|---|---|
| Connector | X13 with four analog outputs |
| Output Type | Four independent bipolar analog outputs |
| Output Range | 10 V DC (0.1%) |
| Resolution | 12 bits |
| Output Current | 2.5 mA per output |
| Update Frequency | 10 kHz, adjustable via LOOPTIME keyword, factory default 1 kHz |
| Load Compatibility | Drives 4000 ohms or larger loads |
| Product Certification | 3C |
| Origin | Switzerland |
| Estimated Weight | 1.29 kilograms |
Key Features:
- Bi-directional analog signal processing: accepts analog inputs from sensors for temperature, pressure, flow, etc., and converts them to digital signals; converts digital signals back to analog outputs to drive actuators and control valves
- High-precision analog-to-digital (A/D) and digital-to-analog (D/A) conversion for accurate signal processing
- Outputs can be used as dedicated servo control signals or general-purpose analog outputs via configuration
- Recommended use of shielded twisted pair cables for signal transmission, with shielding connected at only one end
Applications:
- Industrial process control for monitoring and regulating temperature, pressure, and flow parameters
- Control of industrial actuators, valves, and drive amplifiers
- Integration with industrial control systems for automated production processes
Related Models:
- DSAI 130A Analog Input Module
- DSAI 133A Analog Input Module
- DSAX 110A Analog Input/Output Module
- DSDI 110AV1 Digital Input Module
- DSTD 190V1 Digital Output Module
