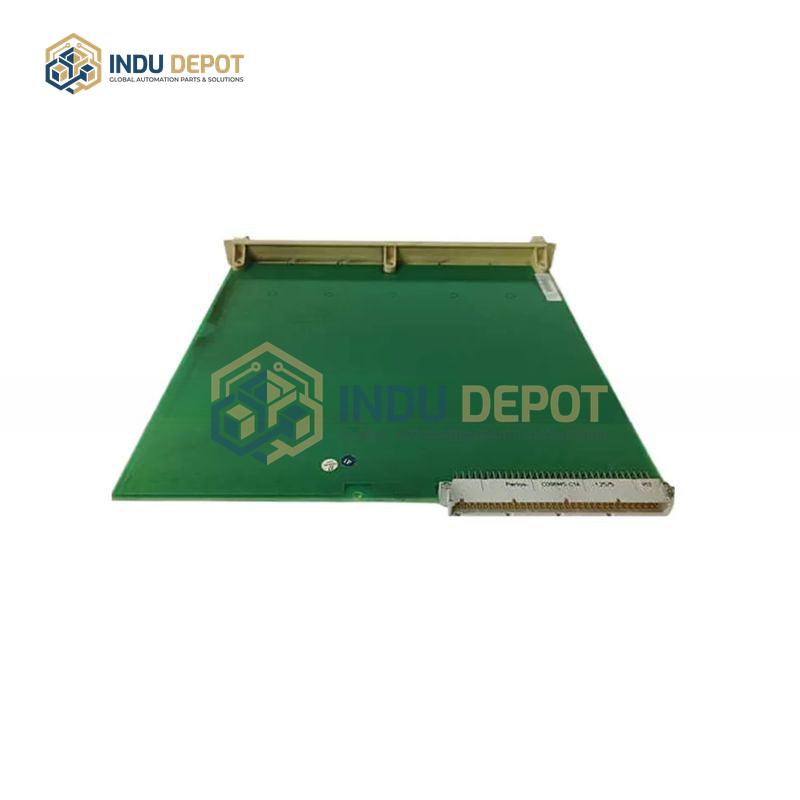

ABB DSBB110A 57330001-Y Digital Signal Board
Description
ABB DSBB110A 57330001-Y Digital Signal Board is a PLC/DCS spare part module designed for industrial automation systems, part of the ABB Advant OCS open, integrated, and distributed control system lineup.
| Specification | Value |
|---|---|
| Product Type | Digital Signal Board, PLC/DCS Spare Module |
| CPU | Motorola 68040, 25 MHz |
| RAM Options | 8 Mbyte or 16 Mbyte dynamic RAM |
| Communication Bus | VMEbus, S100 I/O Bus |
| Program Storage | Flash PROM, PCMCIA program card interface |
Key Features:
- Integrates with VMEbus, supporting position monitor broadcast signaling via LM0-LM3 addresses in short I/O space
- Includes diagnostic indicators, character display, four-position mode switch, and restart button for system oversight
- Supports communication with external control systems through dedicated signal interrupts (SIG0-SIG3)
- Open architecture design enables integration with fieldbus and high-speed factory networks
Applications:
- Industrial automation control systems for electronics, battery, electrical, and mining industries
- DC drive system signal interface and expansion for precise motor control applications
- Spare part for ABB Advant OCS controller system maintenance and upgrades
