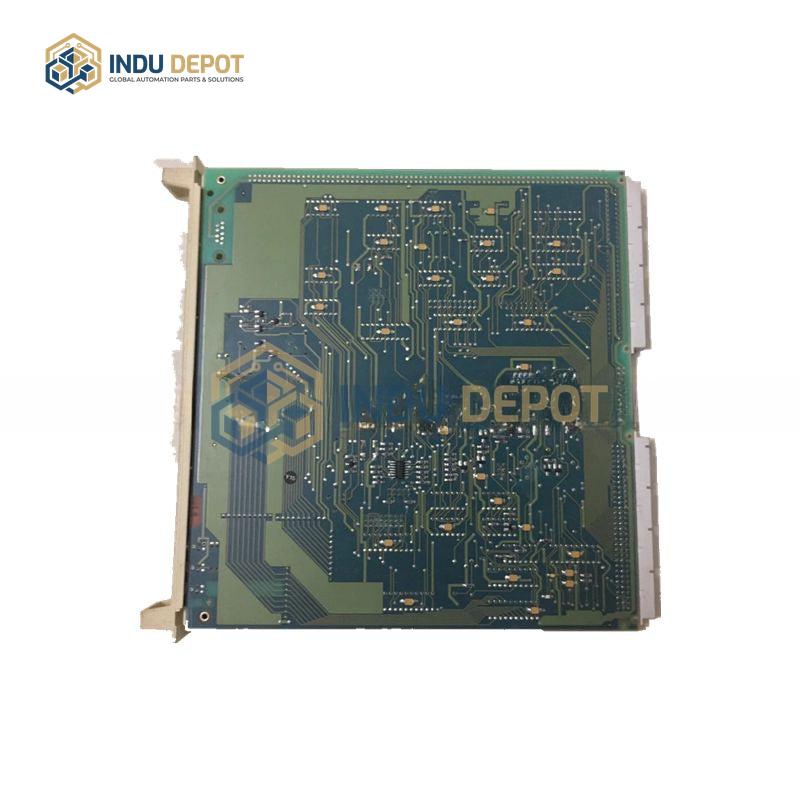

ABB DSBC 170 Industrial Circuit Board Card
Description
ABB DSDP170 57160001-ADF Industrial Drive Board is a critical pulse driver board designed exclusively for the ABB ACS880 series industrial drives. It serves as the essential interface between the digital control system and high-power IGBT stages, converting low-level PWM signals into isolated, amplified gate drive signals to enable precise motor speed and torque control.
| Specification | Value |
|---|---|
| Product Model | DSDP170 57160001-ADF |
| Manufacturer | ABB |
| Product Type | Drive Board / Pulse Driver Board |
| Logic Supply Voltage | +24 VDC |
| Main Interfaces | Fiber optic interface (connects to control board), electrical interface (connects to IGBT drive board or direct drive) |
| Core Function | PWM signal isolation, amplification, and distribution |
| Applicable Drive Platform | ABB ACS880 series medium/low voltage drives |
| Operating Temperature Range | 0 to 55 degrees Celsius (typical) |
| Mounting Method | Board-to-board connector or screw mounting to drive unit backplane |
| Status Indication | LED indicators for power, fault, and communication status |
Key Features:
- Superior reliability and signal fidelity via advanced optoelectronic isolation, preventing interference and optimizing IGBT switching trajectories to reduce losses
- Precise PWM signal drive ensures accurate IGBT switching, delivering smooth motor current waveforms and reducing harmonic losses and torque ripple
- Built-in multi-layer protection including DESAT detection, active clamping, and soft shutdown with microsecond-level fault response
- High electrical isolation voltage rating meets strict industrial safety standards
- Strong drive capability provides sufficient peak current for fast IGBT Miller capacitor charging/discharging, reducing switching time
- Comprehensive diagnostic and status feedback via fiber optic or digital signals enables predictive maintenance
Applications:
- Petrochemical industry for compressor and pump drive systems
- Mining and port operations for heavy material handling equipment like belt conveyors and stacker-reclaimers
- Metallurgy for rolling mill and main drive systems
- Energy infrastructure for power plant auxiliary equipment and water treatment pump controls
