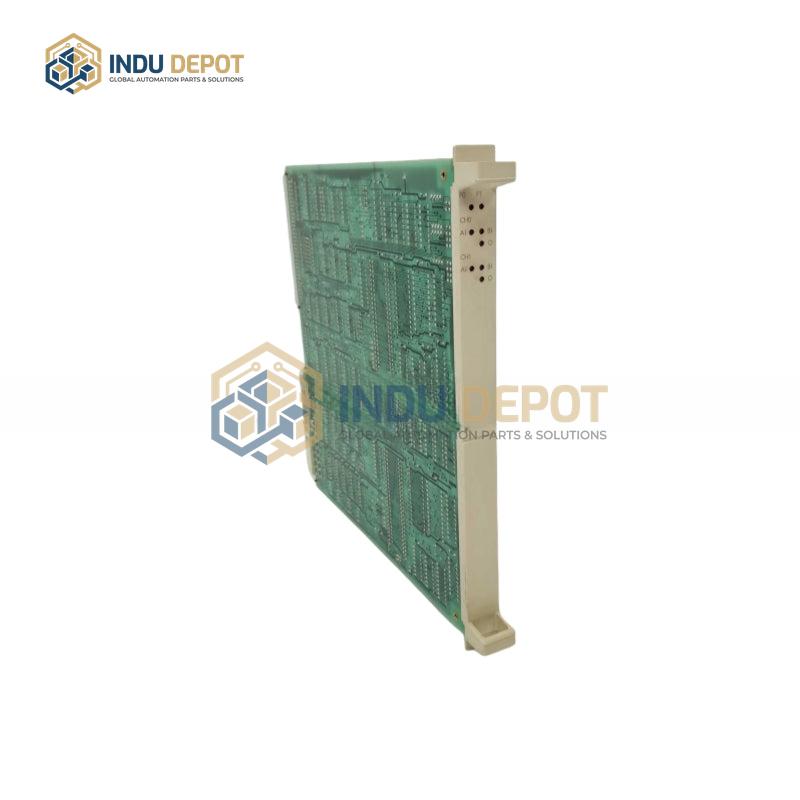

ABB DSCA 125 Communications Board

Description

The ABB DSCA 125 Communications Board is an industrial control communications module designed for use in industrial automation systems. It integrates a set of digital input/output channels, features a neutral bus interface, and enables communication with CPUs and distributed I/O expansion via an optional FBP bus adapter. As a distributed module, it supports centralized expansion of up to 7 input/output modules, with a maximum of 4 analog modules allowed.

Operating on a token-passing bus protocol compliant with the EN50170 standard, the module uses a master-slave communication architecture: the master station controls bus data transmission, and can send data without external requests when holding the bus access token, while passive slave devices only acknowledge received messages or respond to master station requests. It supports baud rates ranging from 9.6k to 12M, and can accommodate up to 126 bus devices. In addition to cyclic data transfer between master and slave stations, it supports non-cyclic DP-V1 operations such as parameter setting and diagnostics, which can run synchronously with cyclic data transmission. For system monitoring, the module is equipped with four status indicator LEDs, and detailed diagnostic information can be displayed on the CPU’s LCD screen.
