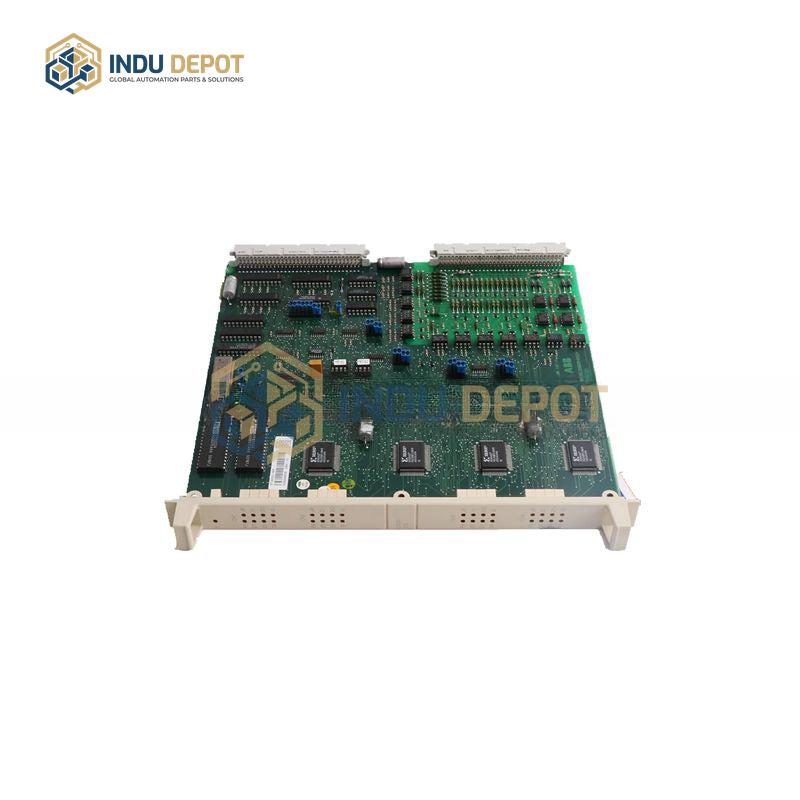

ABB DSDO110 57160001-K Digital Output Board
Description
ABB DSDO110 57160001-K Digital Output Board is a compact, high-reliability digital output module designed for industrial automation control systems, serving as a key component for translating control signals into actionable commands for external devices.
| Specification | Value |
|---|---|
| Output Type | Relay |
| Output Quantity | 8 |
| Load Current per Output | 2 A |
| Power Supply Voltage | 24 VDC |
| Operating Temperature | -25 to 70 degrees Celsius (-13 to 158 degrees Fahrenheit) |
| Storage Temperature | -40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit) |
| Relative Humidity | 5% to 95% (non-condensing) |
| Protection Rating | IP20 |
| Dimensions | 120 x 45 x 22 mm (4.72 x 1.77 x 0.87 inches) |
| Weight | 0.15 kg (0.33 lb) |
Key Features:
- High reliability with quality components and support for redundant configurations for critical applications
- Supports multiple communication protocols including RS232 and RS485 for seamless data exchange with upper-level systems
- Integrated diagnostic functions with detailed status information to enable quick fault identification and troubleshooting
- Excellent scalability, allowing combination with up to 10 local I/O expansion modules and 4 communication processors
- Compact, modular design for easy plug-and-play installation in control cabinets
Applications:
- Distributed Control Systems (DCS) and Programmable Logic Controller (PLC) systems in oil, gas, and chemical processing
- Automated production lines in food, beverage, and pharmaceutical manufacturing
- Power generation, water treatment, and mining operation control systems
- Machine control for conveyor systems, valves, motors, and status indicator devices
Related Models:
- ABB 57160001-KX
- ABB DO802
- ABB DO810
- ABB DO820
- ABB DO880
