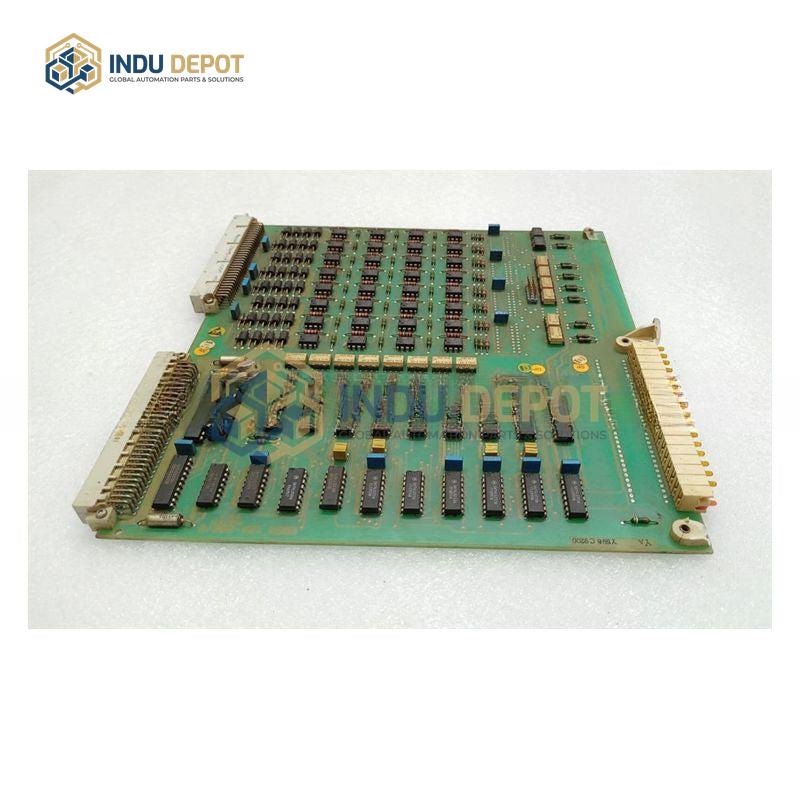

ABB DSDO115 Digital Output Module for Symphony Series DCS
Description
ABB DSDO115 Digital Output Module is a digital output module for the Symphony Series DCS, designed to convert digital signals into output signals to control external actuators such as relays, valves, and motors.
| Specification | Value |
|---|---|
| Input Voltage | 24V DC |
| Output Channels | 8 |
| Per-channel Output Current | 2A |
| Maximum Output Power | 160W |
| Operating Temperature Range | -20 to 60 degrees Celsius |
| Storage Temperature Range | -40 to 85 degrees Celsius |
| Relative Humidity | 5% to 95% (non-condensing) |
| Protection Rating | IP65 |
| Dimensions | 120mm x 80mm x 40mm |
| Weight | 0.5kg |
| Compliance | IEC 61131-3, CE, UL certified |
Key Features:
- High reliability with premium components and strict testing for harsh industrial environments
- Supports multiple digital signal outputs including binary, BCD, and pulse signals
- Built-in anti-jitter and over-voltage protection for stable, safe operation
- Intuitive configuration software for easy parameter setup
- Modular design for simplified installation and maintenance
- High efficiency to reduce power consumption
Applications:
- Manufacturing automation systems
- Process industry control
- Power sector operations
- Building automation
- Transportation control systems
- Control of relays, valves, motors, and other industrial actuators
Related Models:
- ABB DSDO115A
- ABB DSDO115ADC
