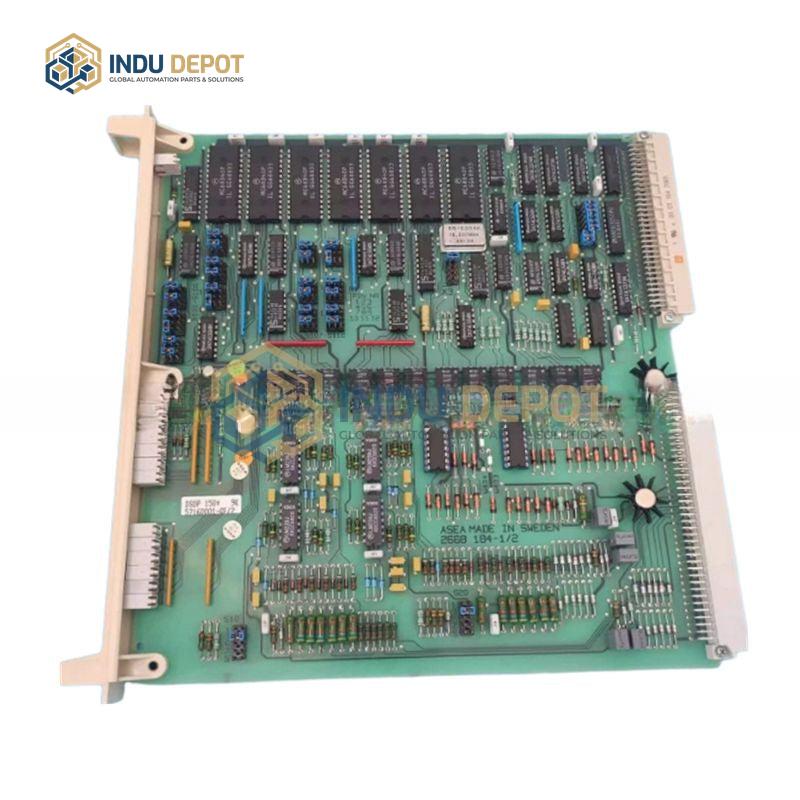

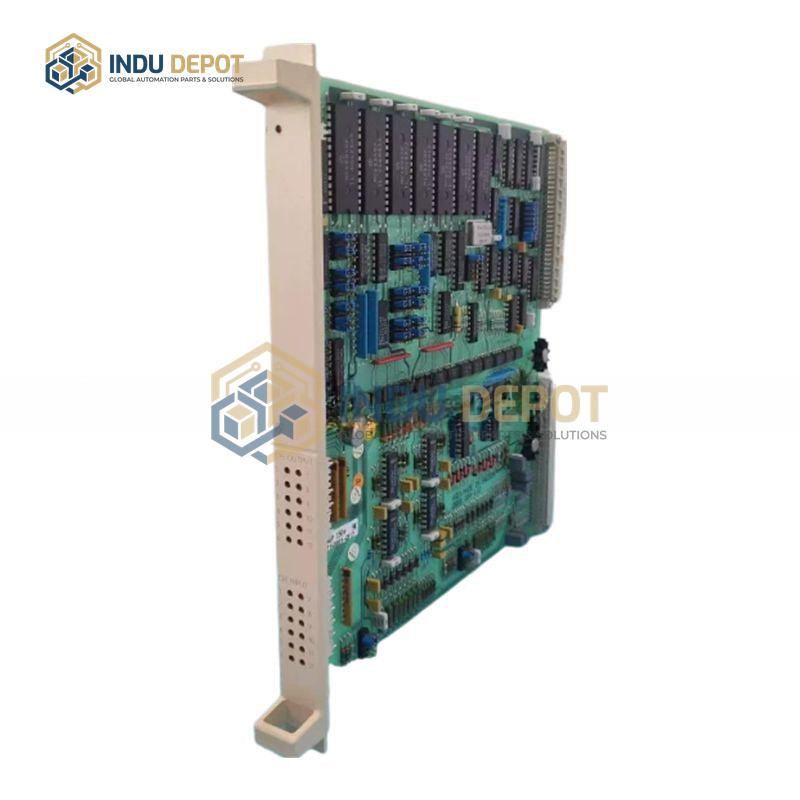

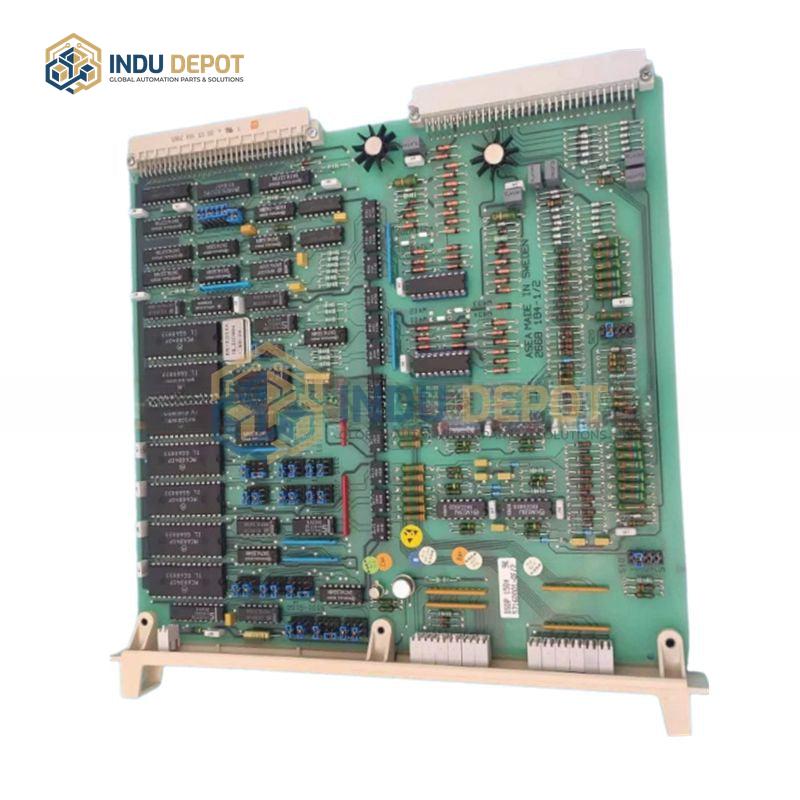

ABB DSDP150 Pulse Counting Positioning Module Control Component
Description
ABB DSDP150 Pulse Counting Positioning Module Control Component is a high-precision pulse encoder input unit designed for integration with the ABB Ability System 800xA control system. It converts pulse signals from encoders into digital signals for processing by the host control system, enabling accurate motion measurement and control.
| Specification | Value |
|---|---|
| Input Channels | 2 |
| Supported Encoder Types | Incremental, absolute |
| Maximum Resolution | 22 bits |
| Maximum Counting Frequency | 10 kHz |
| Output Interface | RS-485 |
| Dimensions | 160mm x 100mm x 25mm |
| Mounting Method | DIN rail |
| Operating Temperature Range | -20 to 85 degrees Celsius |
Key Features:
- High precision measurement with accuracy up to 0.01 degrees
- Redundant design for enhanced reliability and fault-safe operation
- Plug-and-play functionality for easy, configuration-free installation
- Supports high-speed pulse signal processing and conversion
Applications:
- Industrial control for motors, servo motors, and robotic systems
- Numerical control machining for lathes, milling machines, and grinders
- Packaging and printing for presses, cutters, and binders
- Access control systems for secure entry management
Related Models:
- ABB DSDP150 57160001-GF
- ABB DSDP140
- ABB DSDP160
