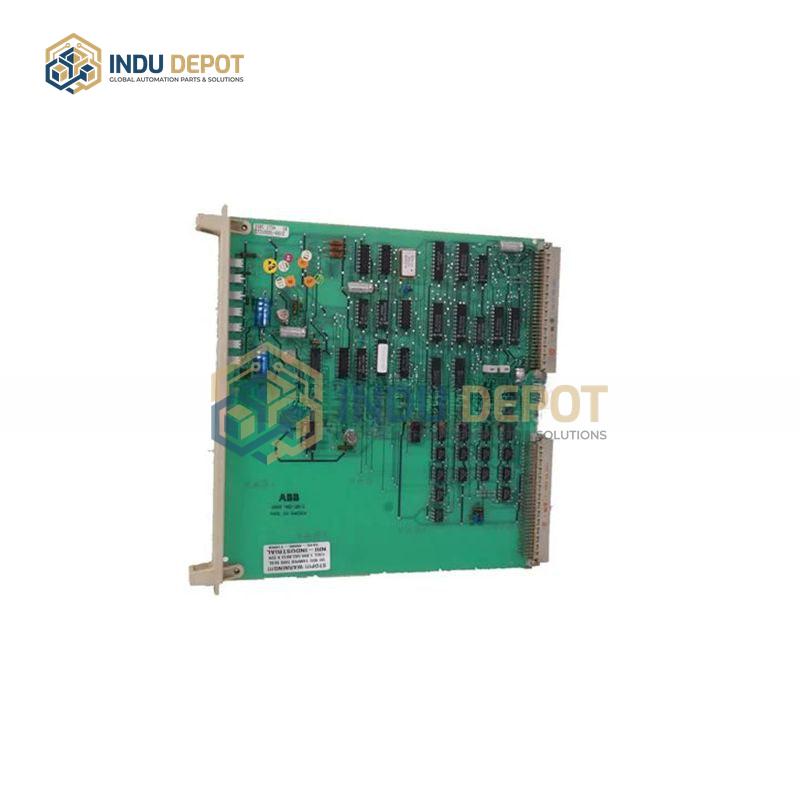

ABB DSPAD/02/649 Digital Signal Processing Module

Description

The ABB DSPAD/02/649 Digital Signal Processing Module is an imported processor interface board and I/O module designed for integration into DCS (Distributed Control Systems). As a digital signal processing (DSP) device, it is engineered to support real-time, high-speed execution of digital signal processing algorithms, meeting core signal processing and control requirements for industrial control systems.

Built with specialized DSP architecture, it features key technical capabilities including separate program and data memory spaces for simultaneous instruction and data access, multiple multiply-accumulate (MAC) units to complete one multiplication and one addition per instruction cycle, and on-chip fast RAM accessible via independent data buses. It also includes hardware support for low-overhead looping and branching, multiple dedicated hardware address generators for efficient memory addressing, and parallel operation support with pipeline processing to overlap fetch, decode, and execute operations. The module functions as a processor interface component, facilitating data transfer between system processors and I/O components, and is optimized to handle signal acquisition, transformation, filtering, and enhancement tasks critical for stable DCS system operation.
