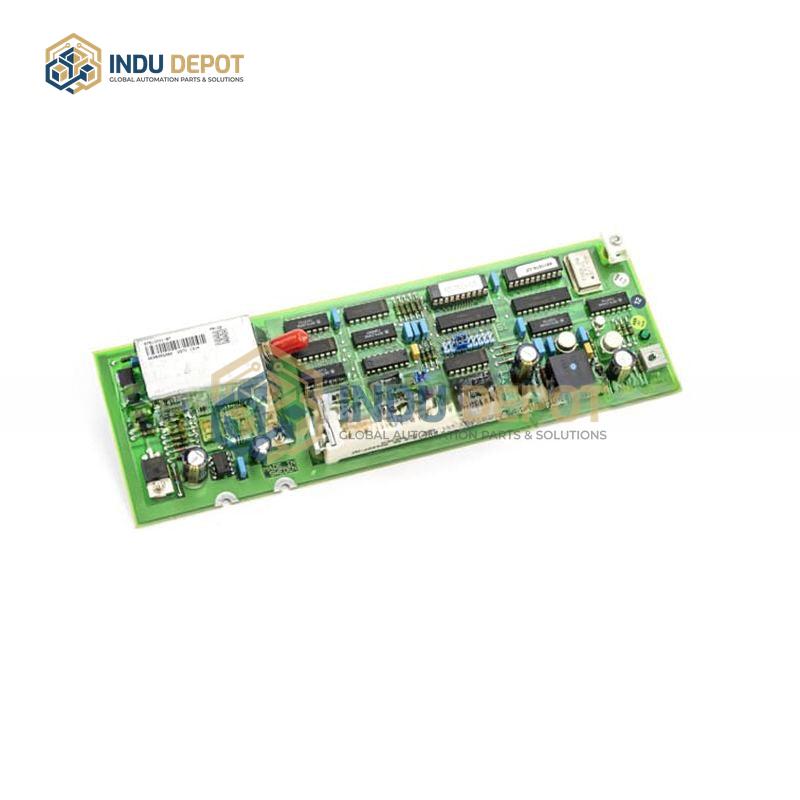

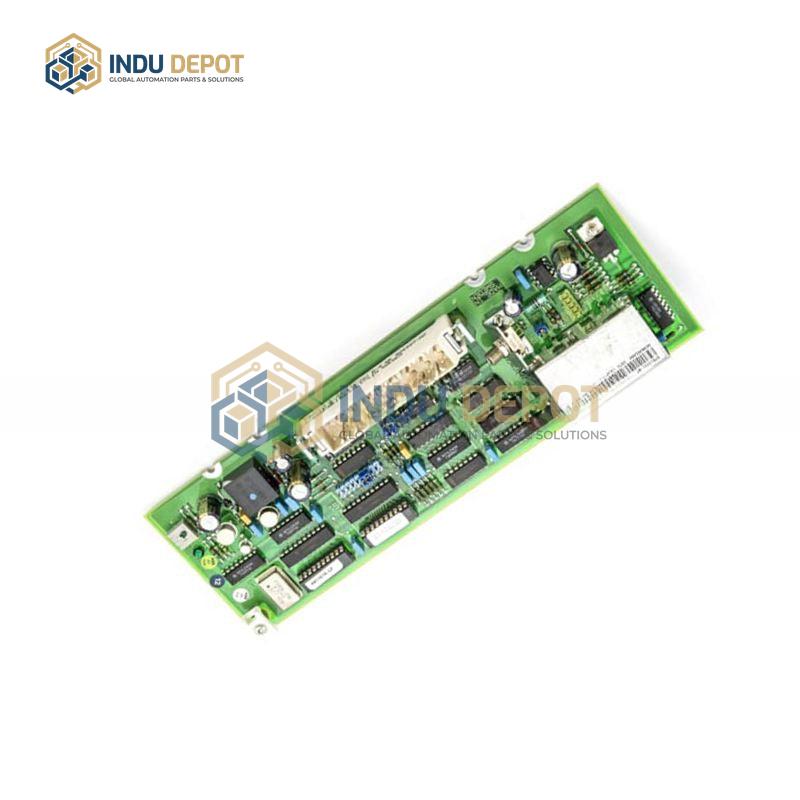

ABB DSTC 131A Industrial Communication Board
Description
ABB DSTC 131A Industrial Communication Board is a modular industrial automation connection unit belonging to ABB’s S100 series of controllers and I/O modules, designed to link AI boards with S100 series controllers while expanding analog and digital I/O channels for signal collection and control.
| Specification | Value |
|---|---|
| I/O Channels | 32 analog (16 input/16 output), 16 digital (8 input/8 output) |
| Input Voltage Range | ±10V or ±5V |
| Resolution | 12 bits or higher |
| Isolation Voltage | ≥1500 VRms |
| Protection Class | IP20 |
| Operating Temperature | -20 to 55 degrees Celsius |
| Power Supply | 24 V DC |
| Installation | DIN rail mount |
| Supported Protocols | ControlNet, AS-i, Profibus, Industrial Ethernet, MPI |
Key Features:
- Modular design for stable, high-reliability operation
- Hot-swappable function enables easy maintenance and replacement without power shutdown
- Built-in diagnostic function for timely fault detection
- Multi-level password protection prevents unauthorized operation and program modification
- Configurable sampling rate for flexible signal acquisition
Applications:
- Industrial control including motor control, process control, and robot control
- Building automation such as HVAC control, lighting control, and security systems
- Data collection and monitoring in industries like steel, power generation, paper, chemical, and metallurgy
Related Models:
- ABB DSAI130
- ABB CI801
- ABB DSTA131
