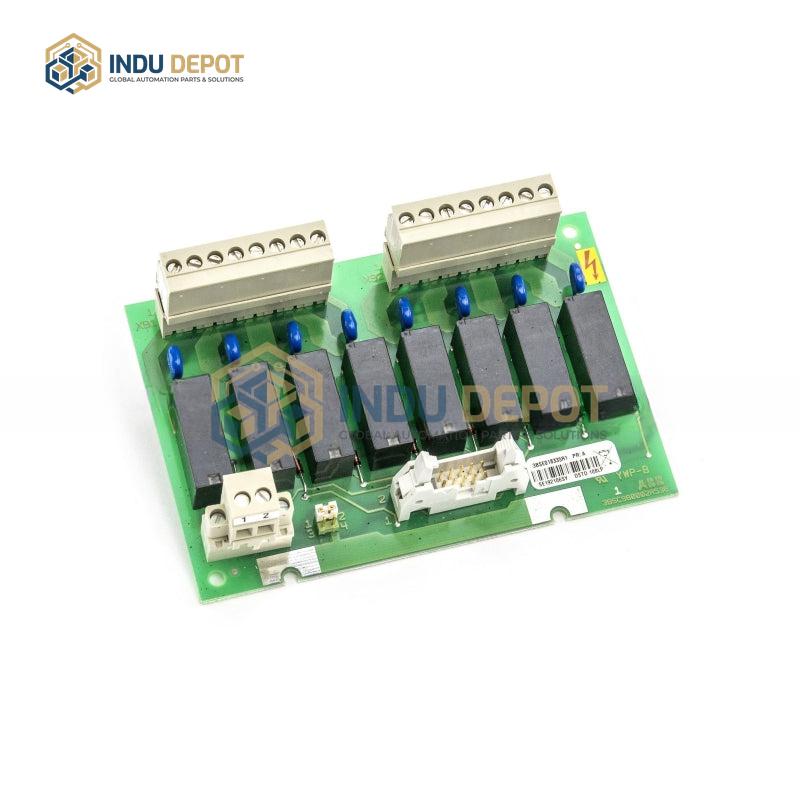

ABB DSTD 108LP Connection Unit
Description
ABB DSTD108LP (DSTD108P 3BSE018333R1) Connection Unit is an industrial-grade connection unit designed for integration with the ABB Advant Master process control system, serving as a middle node for signal management and device control in automation setups.
| Specification | Value |
|---|---|
| Model Identification | DSTD108P 3BSE018333R1 (8-channel connection unit) |
| Physical Dimensions | 234mm (length) x 99mm (width) x 36mm (height) |
| Weight | 0.168kg |
| Operating Voltage | 24-250V AC/DC |
| Channel Count | 8 digital signal channels with relay outputs |
| Operating Temperature | -20 to 60 degrees Celsius |
| Storage Temperature | -40 to 85 degrees Celsius |
Key Features:
- Acts as a DCS/PLC system middle node for signal connection and conversion between field devices and control systems
- 8 relay outputs enable direct control of motors, valves, and other industrial equipment
- Supports distributed I/O expansion via FBP bus adapter, with up to 7 additional I/O modules
- Modular design allows quick fault location and replacement to minimize downtime
- Industrial-grade construction provides high reliability and strong anti-interference capability
Applications:
- Industrial automation: Production line control, equipment linkage, and process monitoring
- Energy management: Power and petrochemical industry energy scheduling and equipment condition monitoring
- Infrastructure: Traffic signal control and building automation systems
