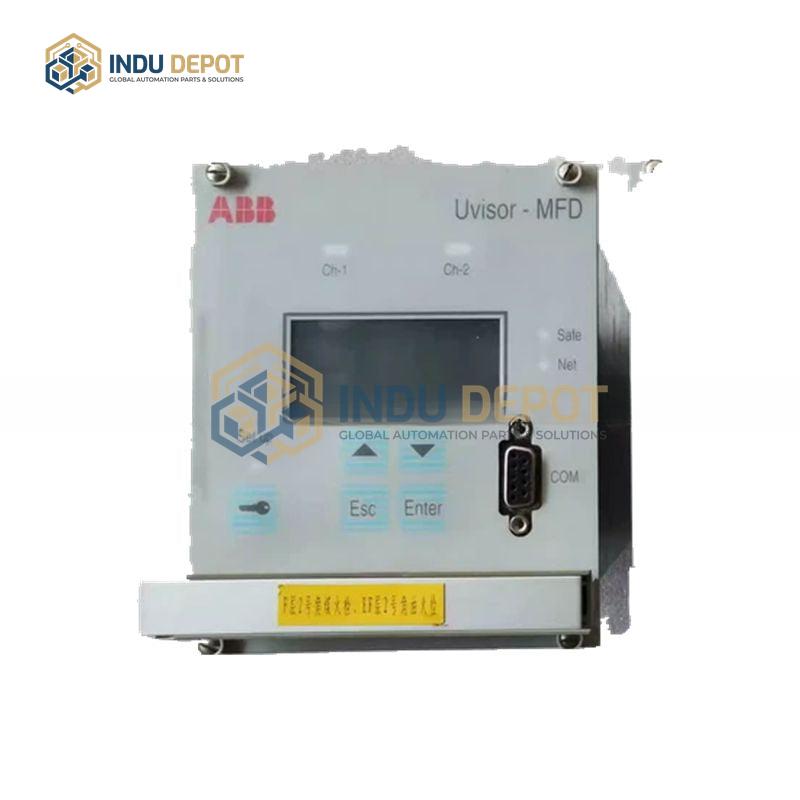

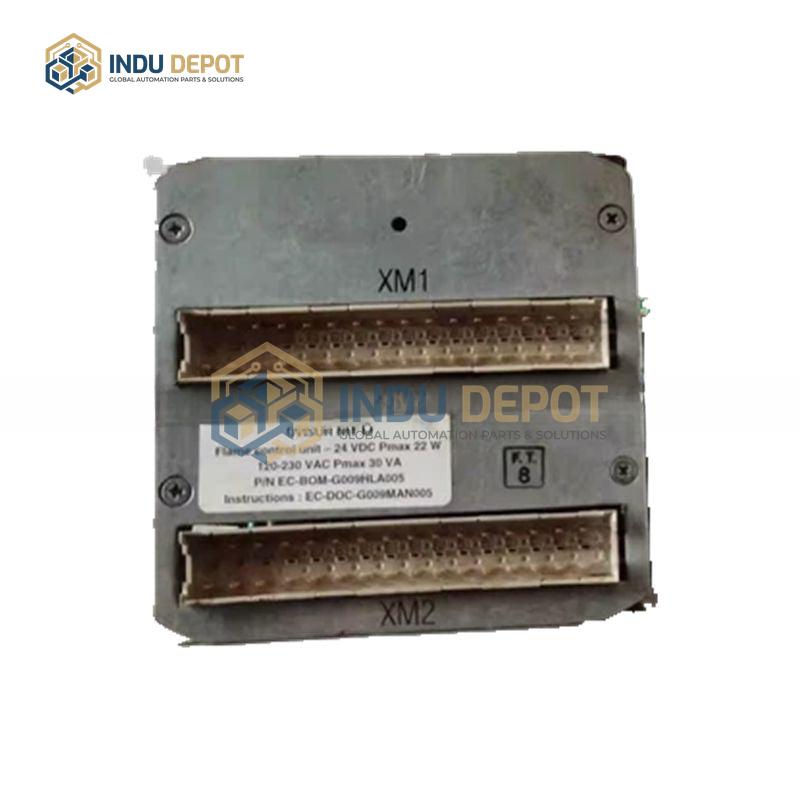

ABB EC-BOM-G009HLA111 Infrared Flame Detector for Power Plants
Description
ABB EC-BOM-G009HLA111 Infrared Flame Detector for Power Plants is a specialized infrared flame detection device designed for real-time monitoring of combustion equipment in power plant settings, part of ABB’s comprehensive flame detection product line that covers signal collection, processing, and system integration.
| Specification | Value |
|---|---|
| Typical Working Voltage | DC24V |
| Operating Temperature Range | -40 to 70 degrees Celsius |
| Operating Humidity Range | Up to 95% RH at 42 degrees Celsius |
| Response Time | 10 seconds or less, 5 seconds optional |
| Detection Angle | Up to 90 degrees |
| Detection Distance | 50 meters for 0.1 square meters standard n-heptane fire |
| Output Options | Relay, 4-20mA, RS-485 |
| Explosion Protection Rating | Ex d II C T6 Gb |
Key Features:
- Dual infrared wavelength detection with multi-frequency analysis for high flame recognition accuracy
- Automatic lens contamination detection to reduce false negatives from blocked optics
- Strong immunity to interference from weather, sunlight, and artificial light sources
- Real-time self-diagnosis function for continuous system reliability
- Adjustable sensitivity to match specific power plant combustion environments
- Compatible with ABB fire detection analysis units for centralized monitoring
Applications:
- Real-time flame monitoring for coal, oil, or natural gas fired boilers in power plants
- Early fire detection for power plant fuel storage and processing areas
- Combustion system safety monitoring for industrial steam generators
Related Models:
- ABB FAU810 Fire Detection Analysis Unit
- ABB QDDMEE20GP Coal and Oil Fire Detection Module
- ABB SF810-FOC-IR Infrared Flame Probe
- ABB SF810INT-LOS-IR-TL-C-W Integrated Intelligent Flame Detector
- ABB SF810-FO-G-2400N Fire Detection Fiber Optic Cable
