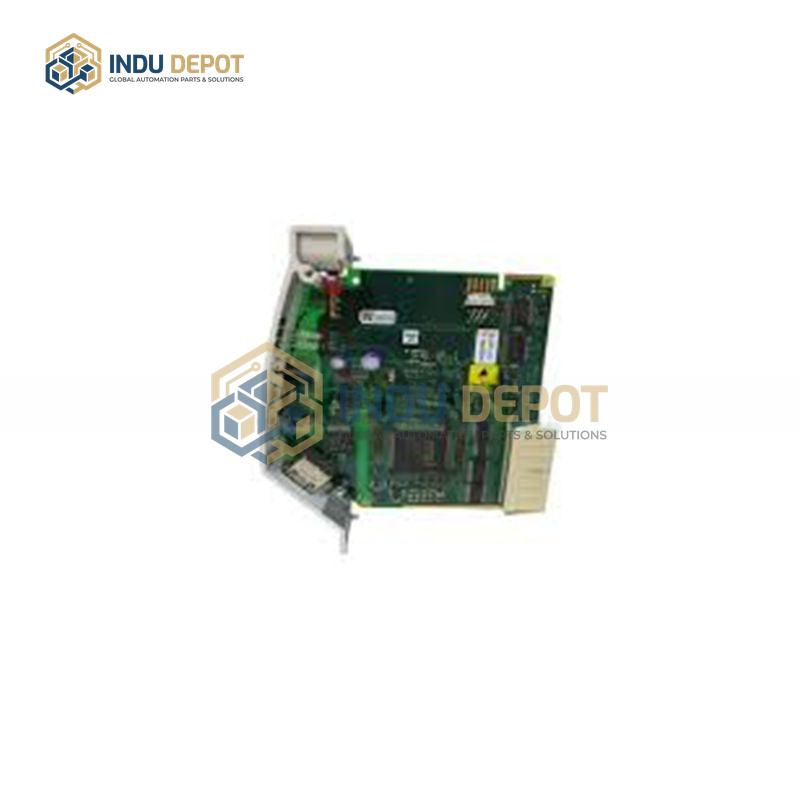

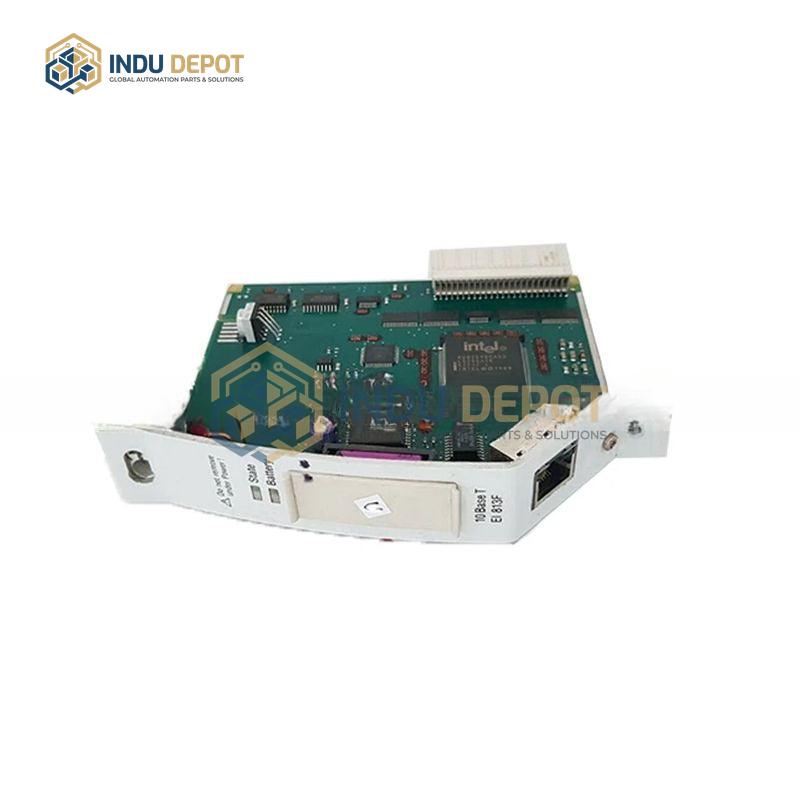

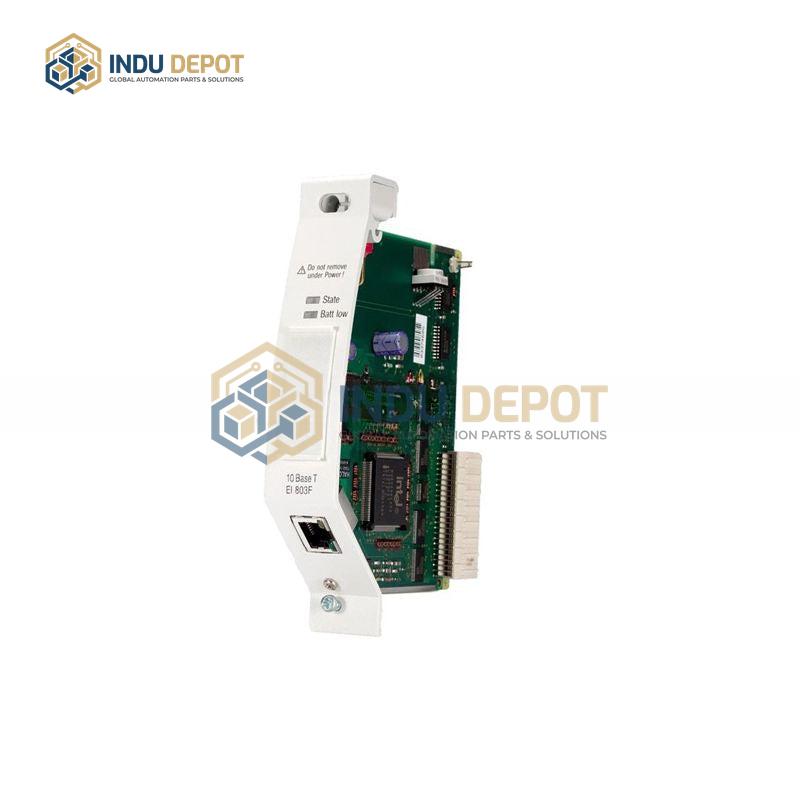

ABB EI803F – Ethernet Module

Description

The ABB EI803F Ethernet Module is a core communication component of the ABB AC800F series control system, designed to enable reliable network communication between control systems and other industrial devices. It supports high-efficiency data transmission and remote control capabilities, making it suitable for process control and industrial automation applications. Key technical specifications include: Ethernet 10BaseT interface, support for multiple communication protocols including Modbus TCP and Ethernet/IP, 24VDC power supply, 2.8 watts power consumption, operating temperature range of -25 degrees Celsius to 60 degrees Celsius, dimensions of 120mm x 80mm x 35mm, and weight of 0.16kg. Built to meet relevant industrial control standards and safety specifications, the module features strong anti-interference performance and high reliability. Additional core features include high-speed data transfer, flexible configuration, and easy installation and maintenance. When integrated with the S800 on Ethernet solution, it supports connection of up to 12 single or redundant S800 I/O modules, 1 ms SOE for digital inputs, HART pass-through, and digital marshalling, enabling seamless integration of existing process I/O into industrial Ethernet networks.
