ABB ES0502A Termination Panel
Description

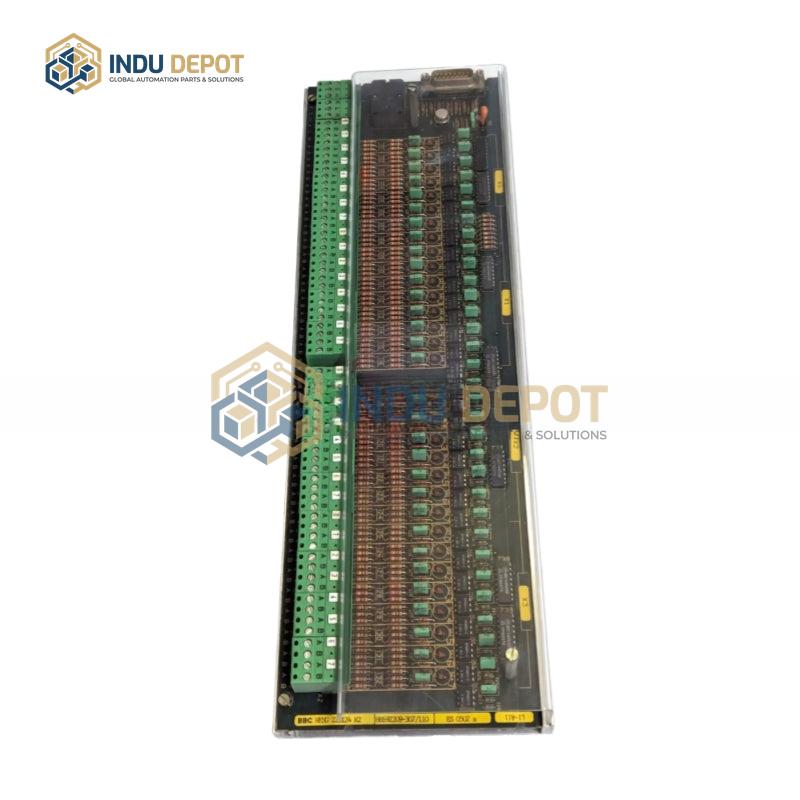

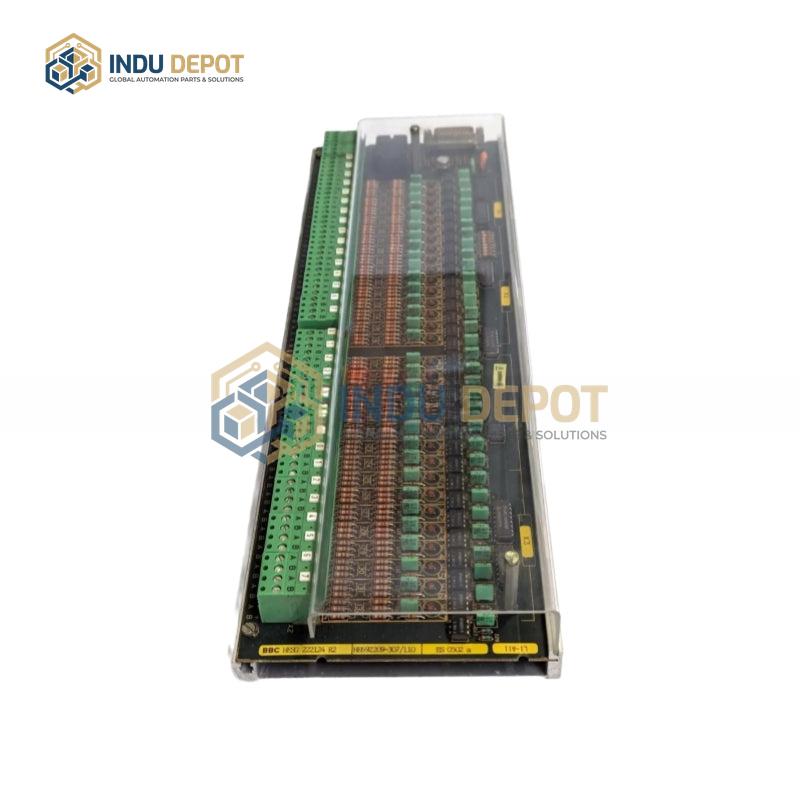

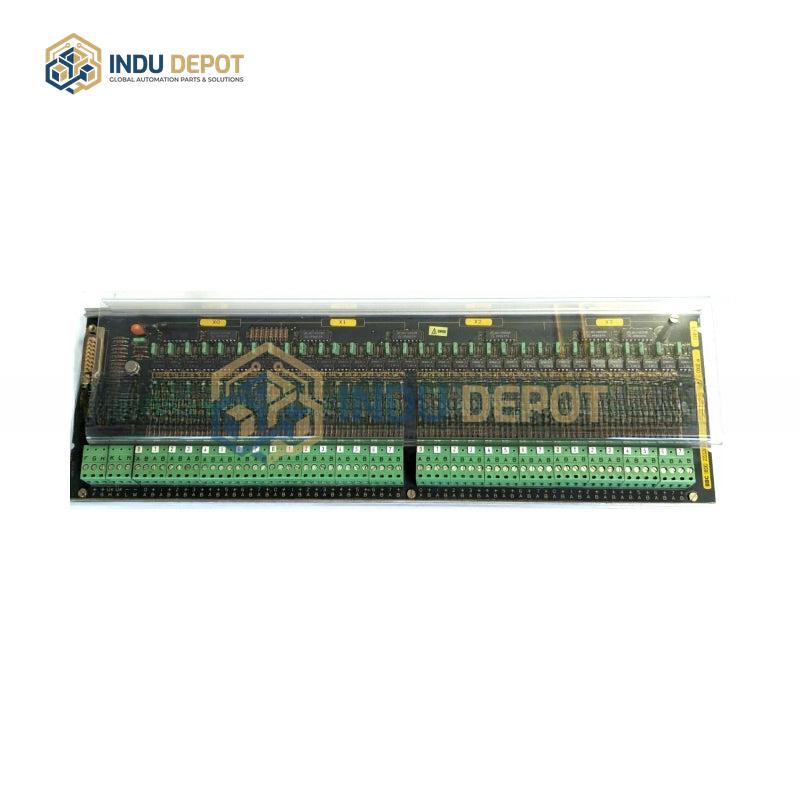

ABB ES0502A Termination Panel is a modular physical interface component designed to connect industrial control system I/O modules with field wiring, supporting structured signal management for centralized or distributed setups.
| Specification | Value |
|---|---|
| Connecting Capacity | Flexible with Ferrule 2x 0.5 to 1.5 square meters |
| Degree of Protection (Housing) | IP50 |
| Degree of Protection (Terminals) | IP20 |
| Overvoltage Category | III |
| Pollution Degree | 3 |
Key Features:
- Enables fast installation and organized signal routing between I/O modules and field devices
- Supports integration with digital, analog, and mixed signal I/O configurations
- Compatible with up to 10 modules per rack or fieldbus node for scalable system design
- Includes dedicated terminals for power input, motor output, DC bus, brake resistance, and control signals
Applications:
- Industrial PLC-based control systems with centralized or distributed I/O setups
- Variable frequency drive (VFD) installations for motor control and energy management
- Process automation systems requiring structured signal handling and noise reduction
- Closed-loop control applications such as constant pressure water supply systems
Related Models:
- ABB S500 I/O Module Series
- ABB CM-ESS.MP Monitoring Relay
- ABB ACS510 VFD Termination Assemblies
- ABB ACS880 VFD Termination Assemblies
