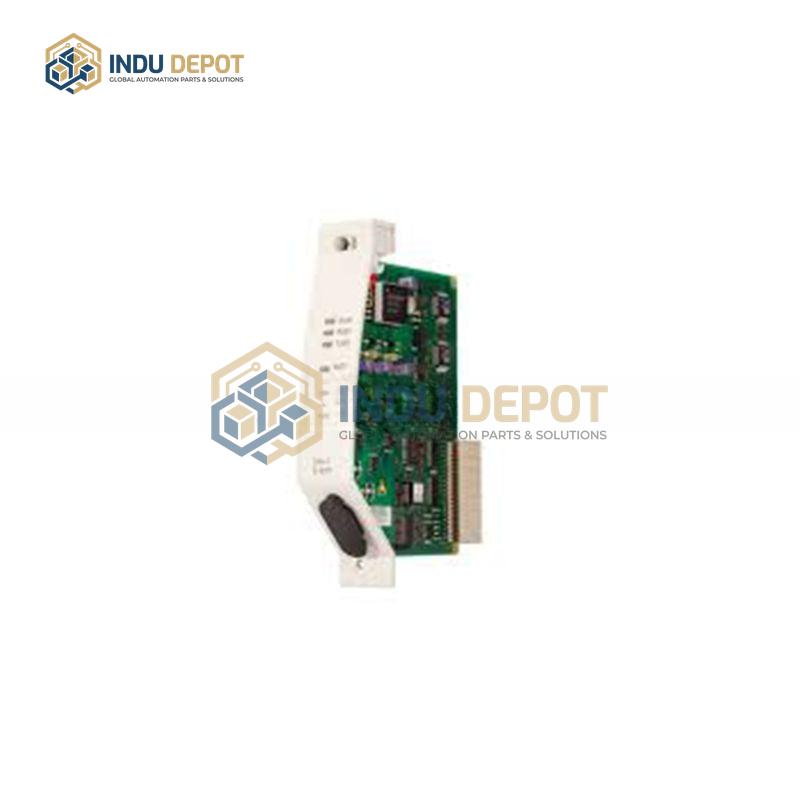

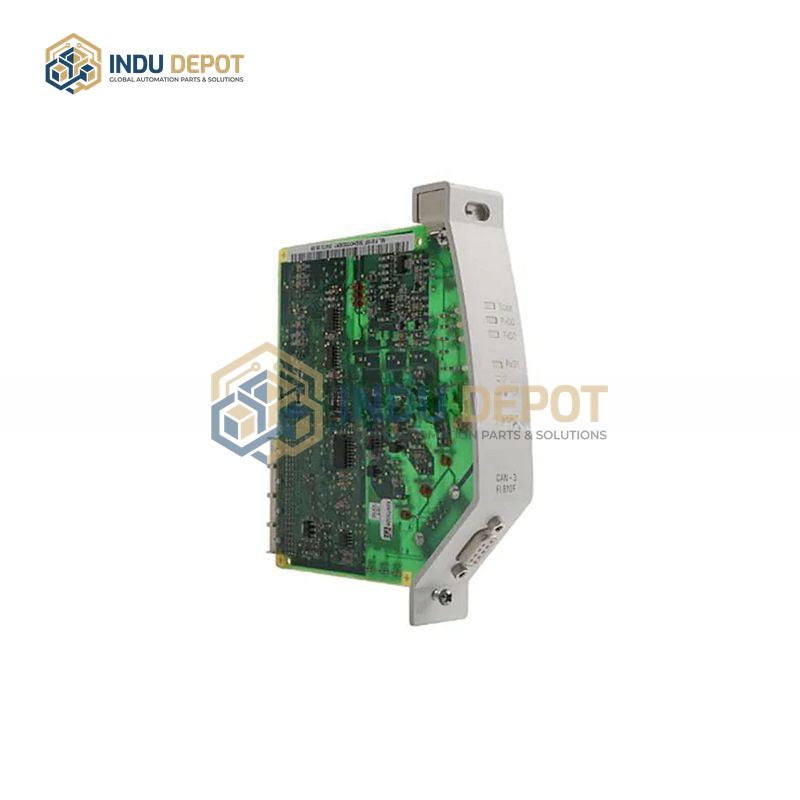

ABB FI810F Fieldbus Module
Description
ABB FI810F 3BDH000030R1 Fieldbus Module is a high-performance communication extension module designed for industrial automation systems, specifically optimized for ABB AC800M series DCS systems. It enables reliable data communication and signal transmission between field devices like sensors and actuators, and central control systems.
| Specification | Value |
|---|---|
| Power Supply Voltage | 24V DC (±15% fluctuation range) |
| Operating Temperature Range | -25 to 70 degrees Celsius |
| Protection Rating | IP20 |
| Supported Communication Protocols | PROFIBUS DP, FOUNDATION Fieldbus, PROFINET, Modbus TCP, EtherNet/IP |
| Maximum Connected Devices | 31 |
| Dimensions | 125mm x 28mm x 155mm |
| Power Consumption | ≤5W |
Key Features:
- Multi-protocol compatibility for seamless integration with diverse industrial devices and control systems
- High-speed data transmission up to 12Mbps, with redundant dual RJ45 Ethernet ports for uninterrupted communication
- Industrial-grade components with robust fault diagnosis and protection functions for stable operation in harsh environments
- Remote monitoring and diagnostic capabilities to enable real-time device status tracking and quick fault resolution
- 35mm standard DIN rail mounting for easy installation in control cabinets
Applications:
- Manufacturing production line automation and process control
- Energy, chemical, and metallurgy industry DCS system communication networks
- ABB robot system integration and remote equipment control
- Event sequence (SOE) data collection for process analysis and preventive maintenance
