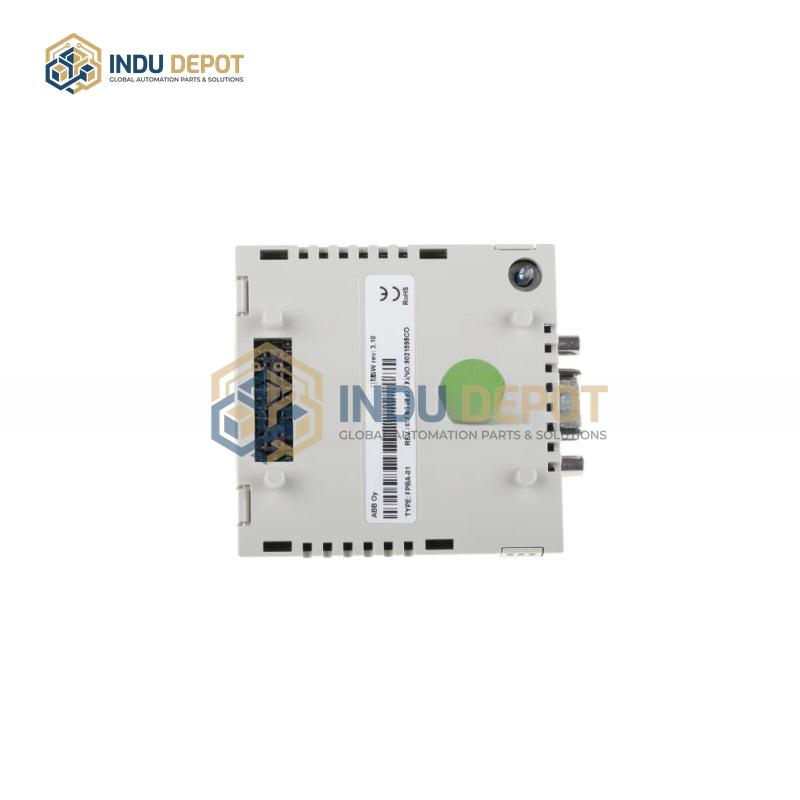

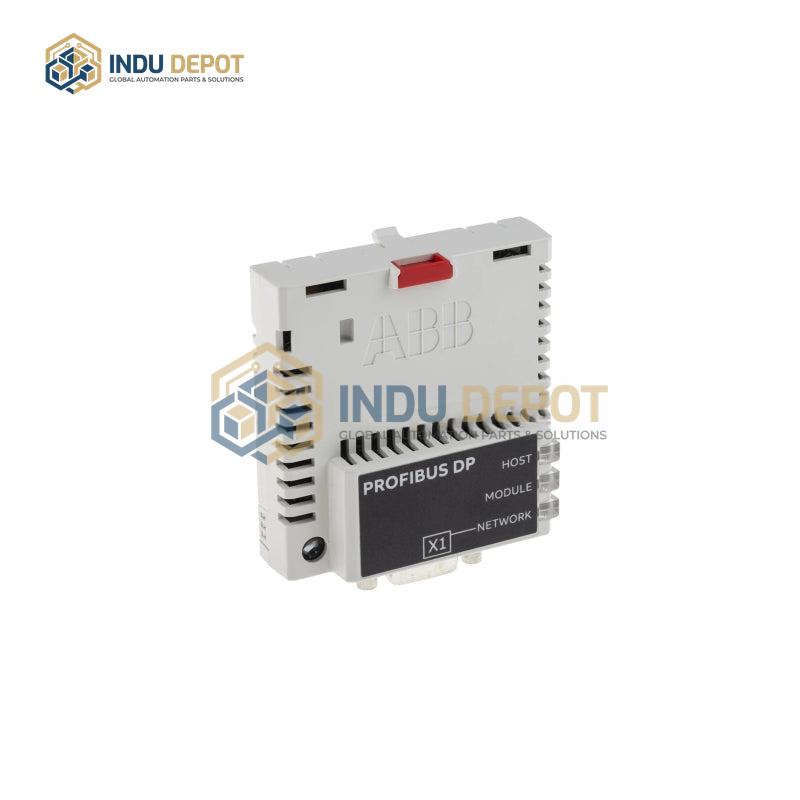

ABB FPBA-01 ProfibusDP Adapter

Description

The ABB FPBA-01 ProfibusDP Adapter is a high-performance PROFIBUS DP adapter module designed for industrial automation systems, enabling reliable communication between drive units and PROFIBUS networks. Key features include support for PROFIBUS DP-V0 and DP-V1 protocols, along with automatic detection of message types, covering PPO messages 1 to 8 and standard (STD) messages 1 and 2 to meet diverse data transmission needs. It supports multiple communication profiles, including PROFIdrive and ABB drive communication profiles, plus transparent 16-bit and 32-bit profiles, ensuring seamless, accurate communication with ABB drive products and other PROFIdrive-compatible devices for precise control and status monitoring.

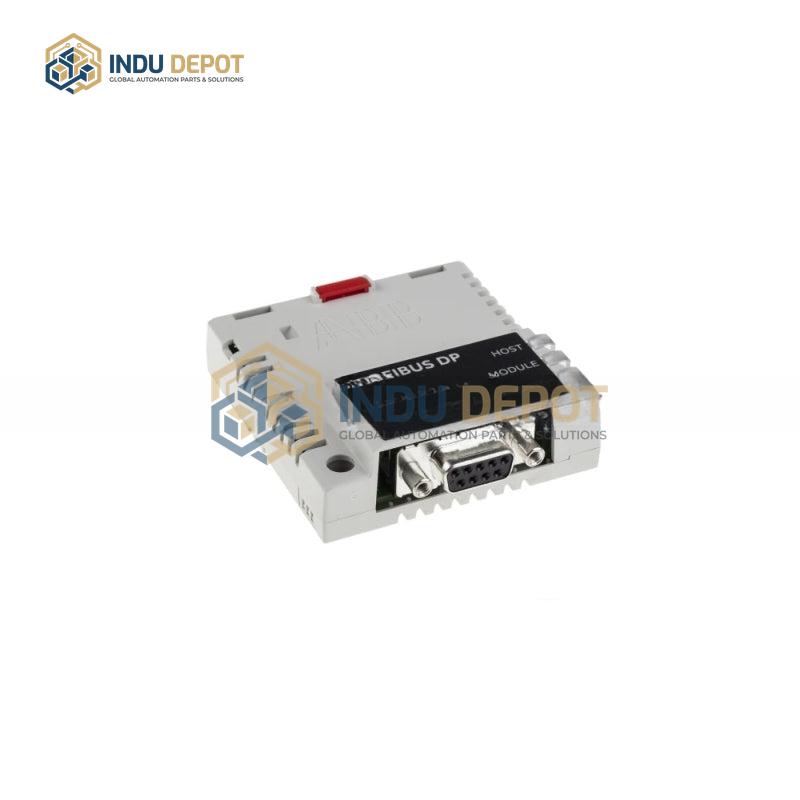

This adapter provides electrical isolation between the drive unit and PROFIBUS network to enhance operational stability. Technical specifications include a PROFIBUS DP interface with 9-pin D-type connector, data transmission rates of 960 kbps, 1.5 Mbps, and 3 Mbps, and a maximum of 32 nodes. It operates on 24 V DC power with a power consumption of less than 5 W, and has a working temperature range of -20 degrees Celsius to +60 degrees Celsius, with an IP67 protection rating. Measuring 115 mm x 30 mm x 25 mm and weighing approximately 150 grams, it features DIN rail mounting and uses twisted pair cable compliant with RS-485 standards for communication media, making it suitable for harsh industrial environments and various automation and drive system applications.
