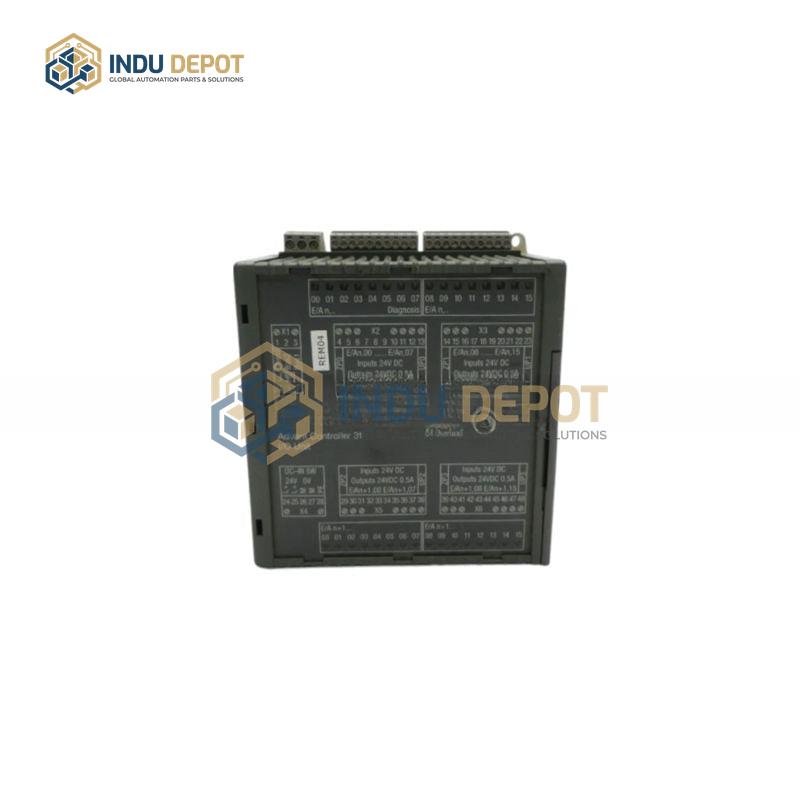

ABB GJR2363100R2000 AC800M Module Board

Description

The ABB GJR2363100R2000 AC800M Module Board is a component of the ABB AC800M fieldbus controller series, first launched in 2002. Designed for industrial automation applications, this module supports redundant configurations for controllers, communication, and power, ensuring high reliability for critical systems. It is compatible with ABB’s CCB configuration software, and can integrate third-party human-machine monitoring software, making it suitable for engineering firm deployments.

Key technical specifications include a 48Mhz processor from the PM856/PM860/PM861/MPC860 series, with 8Mbyte system read-write memory. The CPU delivers high performance, executing 1000 lines of program code in 0.6/0.3ms, and supports a minimum task cycle of 1ms. Application programming adheres to the IEC61131-3 standard, with support for five programming languages: Instruction List (IL), Ladder Diagram (LD), Function Block (FCB), Structured Text (ST), and Sequential Function Chart (SFC). It pairs with S800 I/O modules and supports multiple communication interfaces and protocols, including Ethernet, FF, Profibus-DP, and TCP/IP.

The module meets EMC directive 89/336/EEC acc. to EN 50081-2 and EN 61000-6-2, with an IP20 protection rating. It operates in temperatures ranging from 5 degrees Celsius to 70 degrees Celsius, with a relative humidity range of 5 to 95%, and features an internal battery backup with a typical runtime of 4 weeks, minimum over 48 hours.
