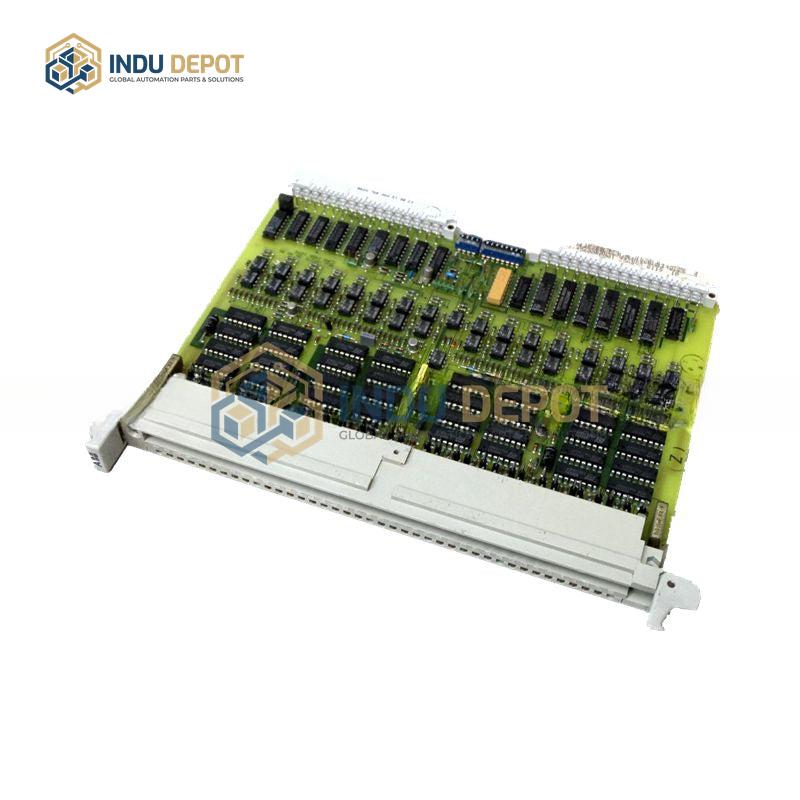

ABB GJR5145600R0001 | 35AB95 Digital Output Module
Description
ABB GJR5145600R0001 | 35AB95 Digital Output Module is an industrial control integrated circuit module designed for automated system signal output control, part of ABB’s industrial automation product lineup.
| Specification | Value |
|---|---|
| Product Type | Digital Output Module, Integrated Circuit (IC) |
| Alternate Model | DSSR122 |
| Item Number | IMDSO14 |
| Output Voltage Range | 10V DC to 30V DC (rated 24V DC) |
| Output Channel Count | 16 channels (2 isolated groups of 8) |
| Output Type | Relay/Transistor (programmable switchable) |
| Single Channel Current | 0.5A continuous, 2A peak (50ms) |
| Isolation Rating | 3000V AC (channel-to-channel, group-to-group, ground) |
| Operating Temperature | 0 to 55 degrees Celsius (horizontal installation); 5 to 55 degrees Celsius (vertical installation) |
| Storage Temperature | -40 to 70 degrees Celsius |
| Protection Rating | IP20 (indoor installation, optional IP54 shield) |
| Installation Method | 35mm DIN rail mount |
Key Features:
- Triple isolation protection with short circuit, overvoltage, overtemperature, and reverse polarity protection
- Independent LED indicators per channel and module-level status lights for quick diagnostics
- Supports multiple communication protocols including Ethernet, Profibus-DP, CANopen, and Modbus RTU
- Fast response time for real-time control applications
- Compact design with low weight for flexible cabinet installation
Applications:
- Power and energy systems including substation automation and power plant control
- Process industries such as oil and gas, chemical, and pharmaceutical manufacturing
- Factory automation lines for automotive, electronics, and semiconductor production
- Water treatment and environmental control systems for pump and aeration management
- Industrial robot end effector and solenoid valve control
