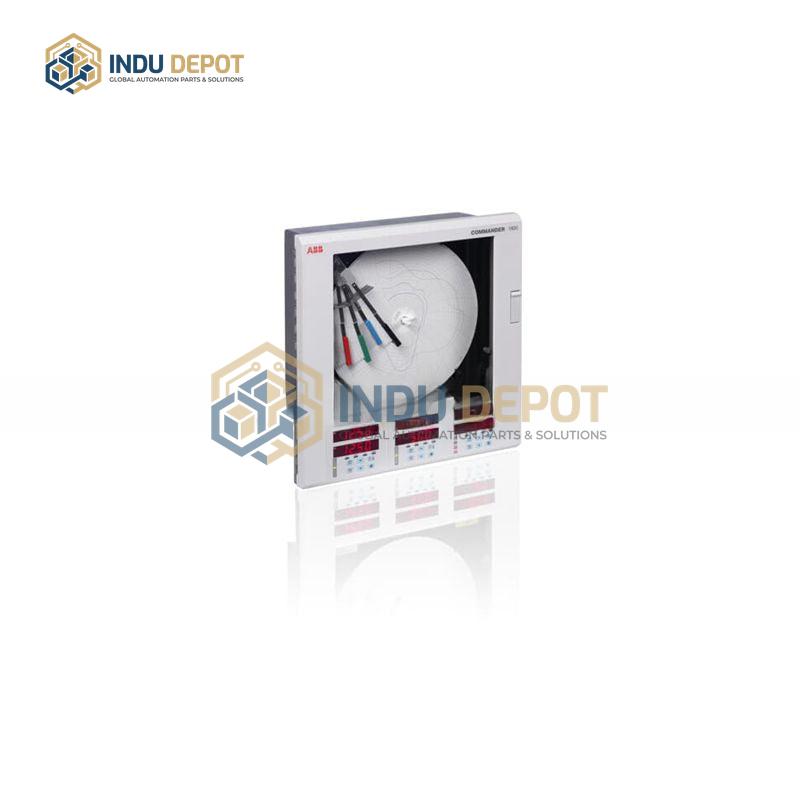

ABB IM/C1900INS circular chart recorders
Description
ABB IM/C1900INS Circular Chart Recorder is a versatile paper-based circular chart recorder designed for flow measurement and industrial process monitoring. It offers flexible configuration and reliable performance in harsh operating environments.
| Specification | Value |
|---|---|
| Type | Paper-based circular chart recorder |
| Analog Inputs | MV, V, mA, Ω, Pt100 |
| Thermocouple Inputs | B, E, J, K, L, N, R, S, T |
| Alarm Relays | 5A @ 115/230V AC |
| Analog Re-transmission | 4-20mA |
| Operating Voltage | 115/230V AC |
| Dimensions | 382 x 386 x 134 millimeters |
| Protection Rating | NEMA 4X/IP66 |
| Chart Rotation Time | 1 hour to 32 days |
Key Features:
- Supports up to 4 recording pens with individually adjustable ranges for optimal signal resolution
- User-configurable math functions, mass flow calculation, accumulators, and RH tables
- Advanced EMC shielding ensures recording accuracy in noisy industrial environments
- Touch keypad for configuration without opening the enclosure, plus password-protected menu access
- 6-digit display shows up to 4 process values and active alarms simultaneously
- Flexible mounting options: wall, pipe, or panel installation
Applications:
- Industrial flow monitoring and process control
- Harsh manufacturing environments requiring high protection ratings
- Pharmaceutical and power generation process tracking
Related Models:
- ABB C1900-R
- ABB Commander 1900
- ABB C1900 (1-2 pen variant)
