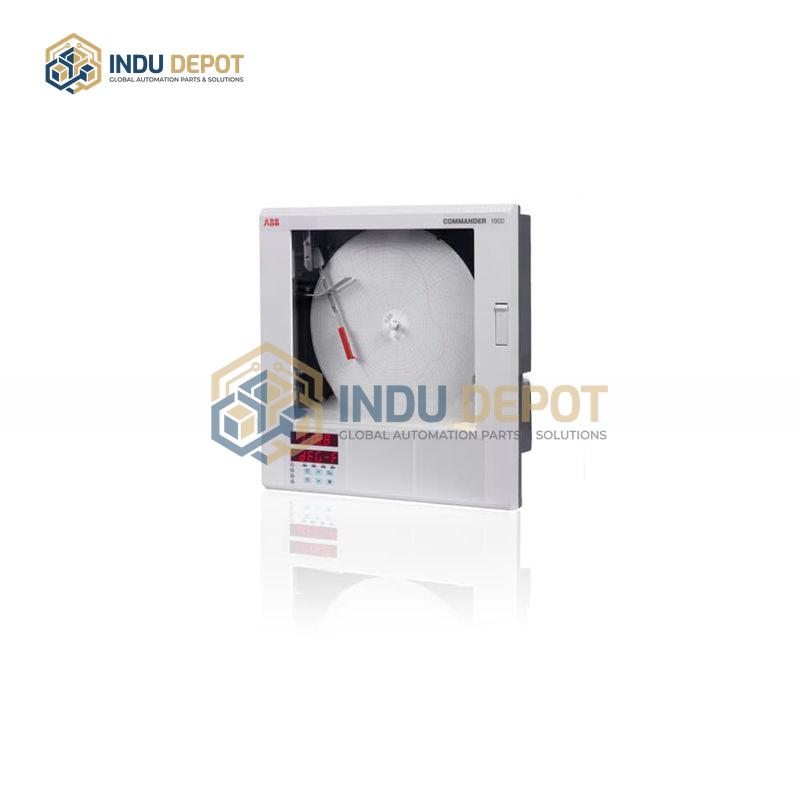

ABB IM/C1900OGR circular chart recorders
Description
ABB IM/C1900OGR Circular Chart Recorder is a universal paper-based circular chart recorder designed for industrial process monitoring and data tracking.
| Specification | Value |
|---|---|
| Measurement Accuracy | 0.1% |
| Chart Speed | 1 to 167 hours per rotation, or 7 to 32 days per rotation |
| Sensor Power Supply | 24V DC |
| Chart Size | 10 inches or 105 millimeters |
| Input Types | Analog: MV, V, mA, Ω, Pt100; Thermocouple: B, E, J, K, L, N, R, S, T |
| Alarm Relays | 5A @ 115/230V AC; includes digital inputs and pen retransmission outputs; analog retransmission: 4-20mA |
| Operating Voltage | 115/230V AC |
| Dimensions | 382 x 386 x 134 millimeters |
| Protection Rating | NEMA4X/IP66 |
Key Features:
- Supports up to 4 trace recording for flexible application use
- Individual pen range settings for high resolution per signal
- User-configurable functions including math operations, mass flow calculation, accumulation, and humidity tables
- Flexible mounting options: wall, pipe, or panel installation
- 6-digit process status display with up to 4 simultaneous process value readings and activated alarms
- Feedback keyboard for on-site configuration without opening the controller; password-protected menus prevent unauthorized access
- High noise immunity for reliable operation in harsh industrial environments
Applications:
- Industrial process monitoring and data logging
- Harsh industrial environments requiring sealed, protected equipment
- Processes needing multi-signal tracking and alarm capabilities
