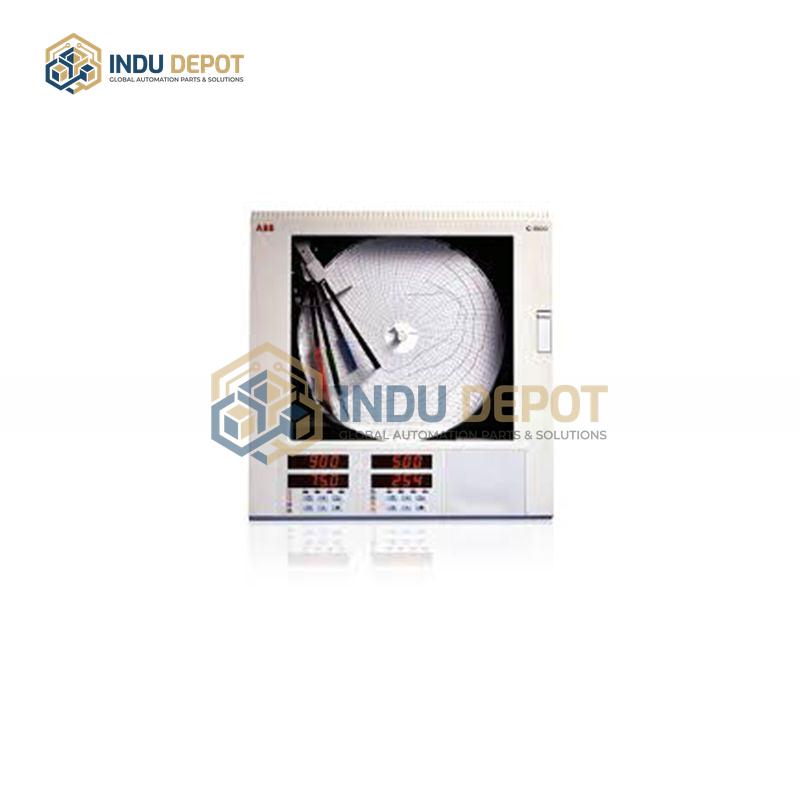

ABB IM/C1900R-Q high-performance circular chart recorder
Description
ABB IM/C1900R-Q High-Performance Circular Chart Recorder is a versatile paper-based circular chart recorder designed for industrial process monitoring, offering flexible multi-channel recording capabilities and reliable performance in harsh environments.
| Specification | Value |
|---|---|
| Maximum Recording Traces | 4 |
| Chart Rotation Time Range | 1 hour to 32 days |
| Protection Rating | NEMA4X/IP66 |
| Process Display Capacity | Up to 4 process values with active alarms |
| Mounting Options | Wall, pipe, or panel mount |
Key Features:
- Individually configurable pen ranges for high signal resolution
- Supports user-configurable mathematical functions, mass flow calculation, totalization, and humidity tables
- Field-upgradable via plug-in cards and easy-to-install pen holders for additional channels, calculations, or I/O
- Advanced built-in EMC shielding for accurate recording in noisy industrial environments
- Feedback keyboard for on-site configuration without opening the unit, with password-protected menu access to prevent unauthorized changes
- 6-digit process status view for real-time monitoring of multiple values and alarms
Applications:
- Industrial process monitoring and data logging
- Pharmaceutical manufacturing processes
- Power plant operations
- Chemical production facilities
Related Models:
- ABB C1900-R
- ABB C1900 Series Circular Chart Recorders
- ABB C1900/0121 (replacement red pen accessory)
