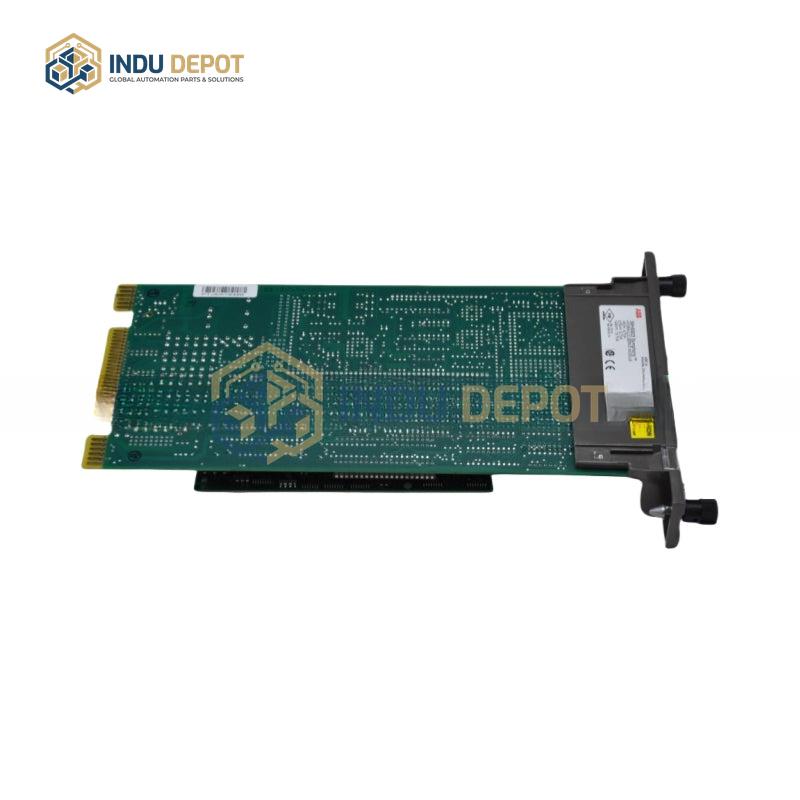

ABB IMHSS03 Hydraulic Servo Module

Description

The ABB IMHSS03 Hydraulic Servo Module is a high-performance component designed for industrial automation and process control, primarily used for valve position control in turbine speed regulation. Its core function is converting digital signals to hydraulic signals to precisely control the position, speed, and pressure of hydraulic actuators. Featuring an integrated design that combines a servo valve or servo motor with a controller, it simplifies system design and installation, reducing overall setup complexity.

Key technical specifications include 24V DC input and power voltage with a rated current of 5A, 10 L/min output flow, and a maximum pressure of 210 bar. It supports a working temperature range of -40 degrees Celsius to +85 degrees Celsius, with typical operating ranges varying by configuration, and offers optional protection ratings from IP20 to IP65. The module measures 120 mm x 80 mm x 60 mm and weighs approximately 2 kg, with flexible mounting options including DIN rail and field installation. Controlled via pulse width modulation (PWM), it interfaces with servo valves or I/H converters and is compatible with IMMFP01, IMMFP02, and IMMFP03 modules as part of the ABB Harmony or Bailey control systems.

Equipped with high-resolution analog-to-digital and digital-to-analog converters, it delivers fast response, high-precision closed-loop control, and reliable operation in harsh industrial environments. It is widely applied in power generation (turbine speed control), metallurgy (rolling mill and continuous caster systems), petrochemical (refinery and chemical production lines), papermaking, and marine propulsion systems, supporting collaborative operation with upper-level control systems for integrated process management.
