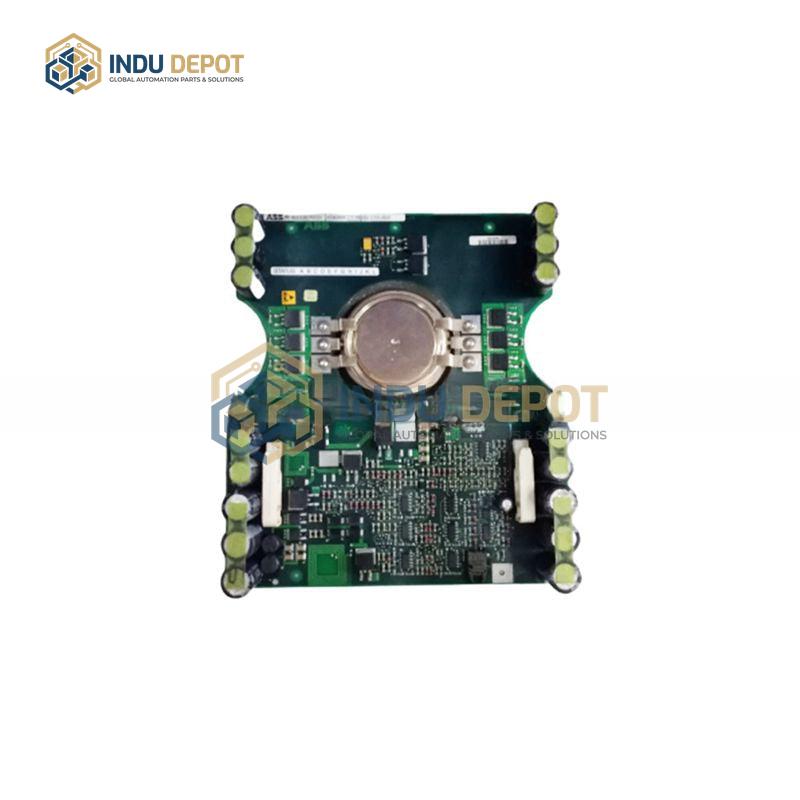

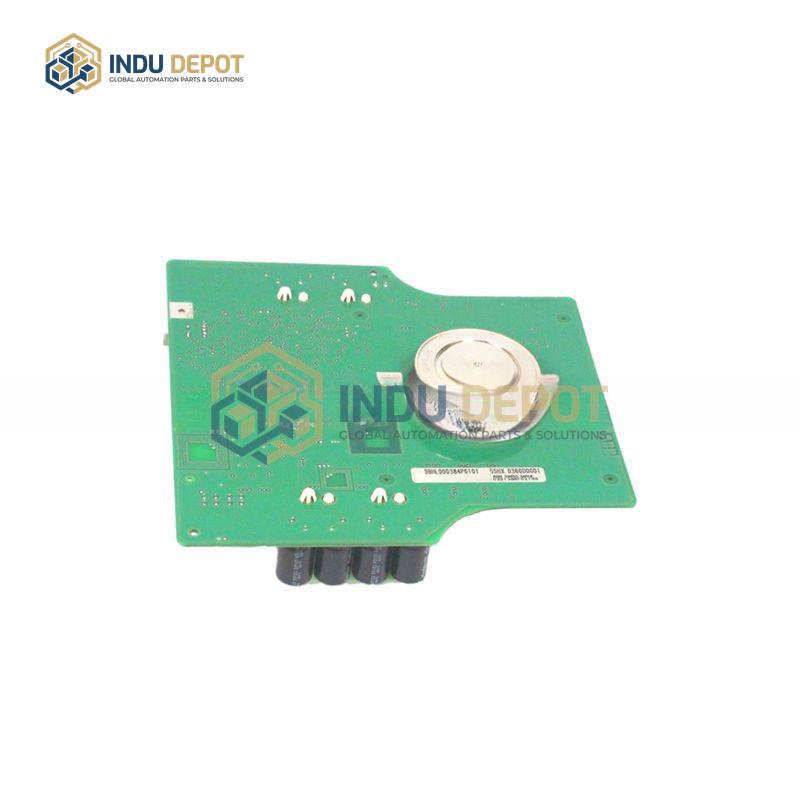

ABB Industrial IGCT Module 5SHX19L6020
Description
ABB Industrial IGCT Module 5SHX19L6020 is a high-power integrated gate-commutated thyristor module designed for medium to high voltage, high-current industrial power control applications. No direct technical data is available for this specific model, so specifications and features are based on comparable ABB 5SHX series IGCT modules.
| Specification | Value |
|---|---|
| Rated Voltage (Repeat Turn-off) | 1600V |
| Rated Voltage (Non-Repeat Turn-off) | 1700V |
| Continuous Rated Current | 60A (dependent on配套 components) |
| Maximum Switching Frequency | Up to 50kHz |
| Operating Temperature Range | -40 to 85 degrees Celsius |
| Protection Rating | IP20 |
Key Features:
- Combines high blocking voltage capability of GTOs with fast switching speed of IGBTs for low power loss
- Integrated gate drive and protection circuits for real-time overcurrent, overvoltage, and overheat protection
- Modular design enables easy installation, maintenance, and parallel expansion for higher power capacity
- Supports industrial communication protocols for remote monitoring and control
- High thermal stability and electromagnetic compatibility for harsh industrial environments
Applications:
- High-power motor drives for mining, metallurgy, and marine propulsion systems
- Renewable energy inverters for wind and solar power generation
- Grid regulation and power conversion equipment
- Generator excitation systems
Related Models:
- ABB 5SHX2645L0004
- ABB 5SHX1960L0006
- ABB 5SHX1060H0001
- ABB 5SHX1960L0004
