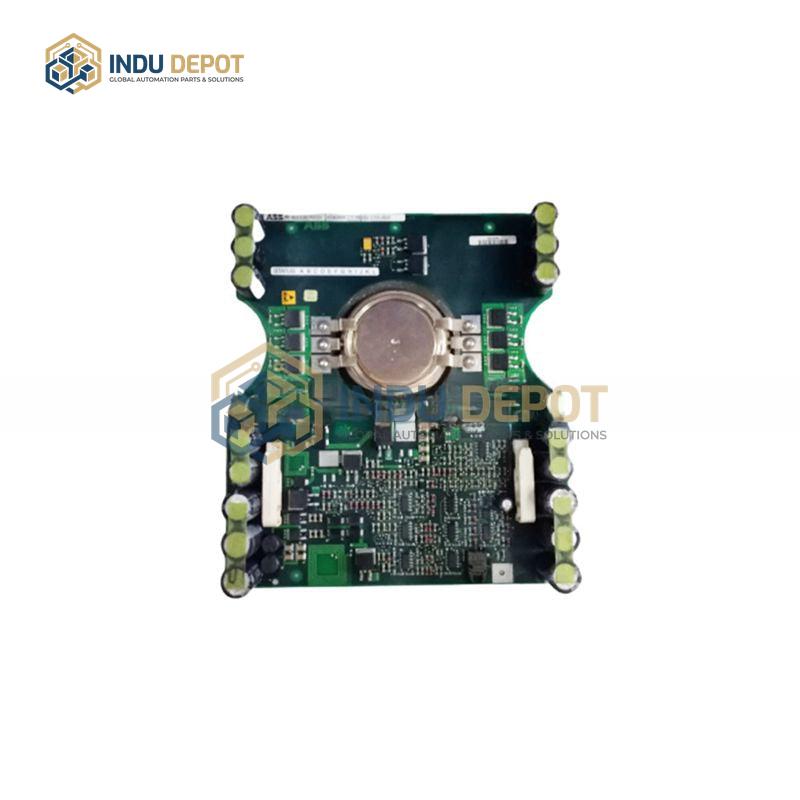

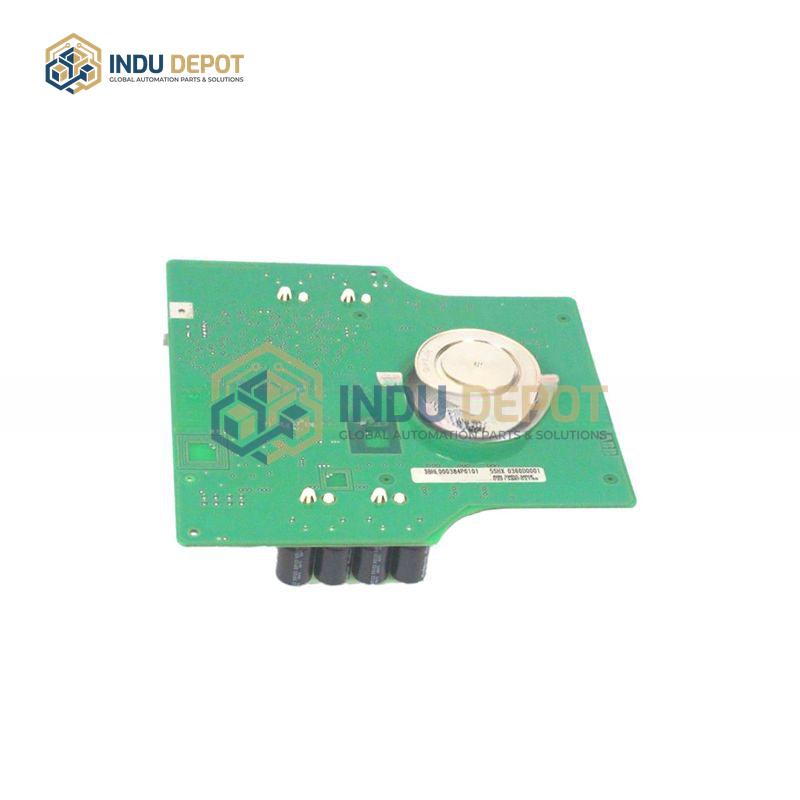

ABB Industrial IGCT Power Module 5SHY55L4500
Description
ABB Industrial IGCT Power Module 5SHY55L4500 is an integrated gate-commutated thyristor (IGCT) module designed for high-power electronic applications. It integrates the drive unit, power semiconductor, and cooler into a single functional unit, using an optimized wafer chip array in a standard housing to reduce engineering and manufacturing time while improving handling convenience.
| Specification | Value |
|---|---|
| Rated Voltage | 4500V |
| Inverter Output Power (2-level Inverter) | Up to 8MW |
| Applicable Line Voltages | 3300V, 4160V |
| Maximum Converter Power (3-level Inverter) | 10MW and above (no parallel/series units needed) |
Key Features:
- Integrated design combines drive unit, power semiconductor, and cooler in one functional unit
- Optimized wafer chip array in standard housing reduces engineering and manufacturing time
- 3-level inverter configuration delivers approximately twice the power of 2-level inverters
- Non-HPT device performance curves flatten at lower frequencies due to safe operating area (SOA) limits
- Scalable application range from 250kW up to 100MW via series connection
Applications:
- High-voltage frequency converters and soft starters
- Motor control systems including variable frequency speed regulation and soft starting
- Power transmission systems such as high-voltage direct current (HVDC) and FACTS devices
- Renewable energy applications like wind and solar power inverters
Related Models:
- 5SHX 1060H0001
- 5SHY4045L0001
- 5SHY4045L0006
