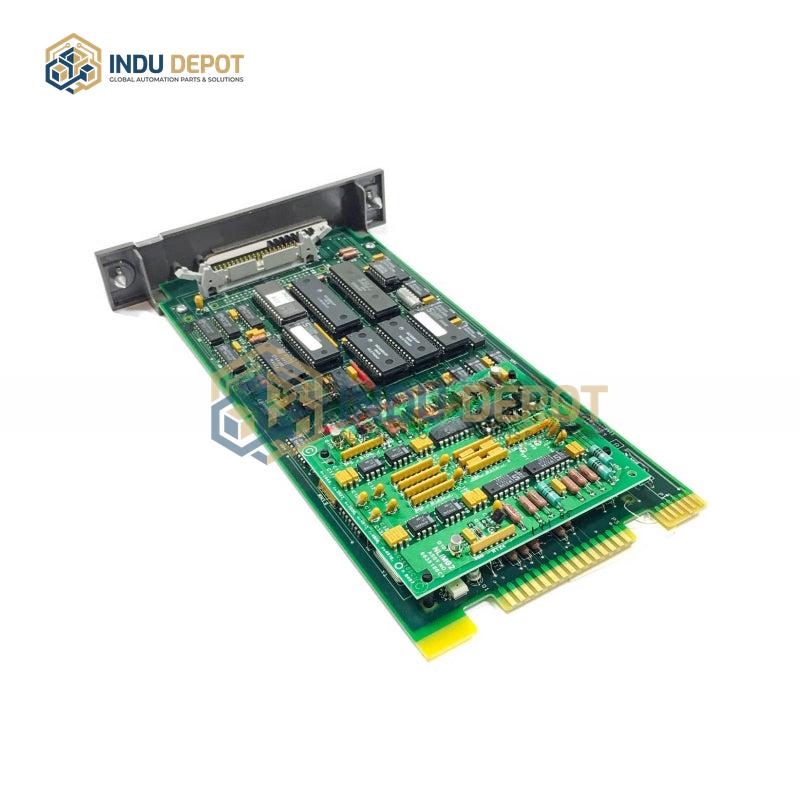

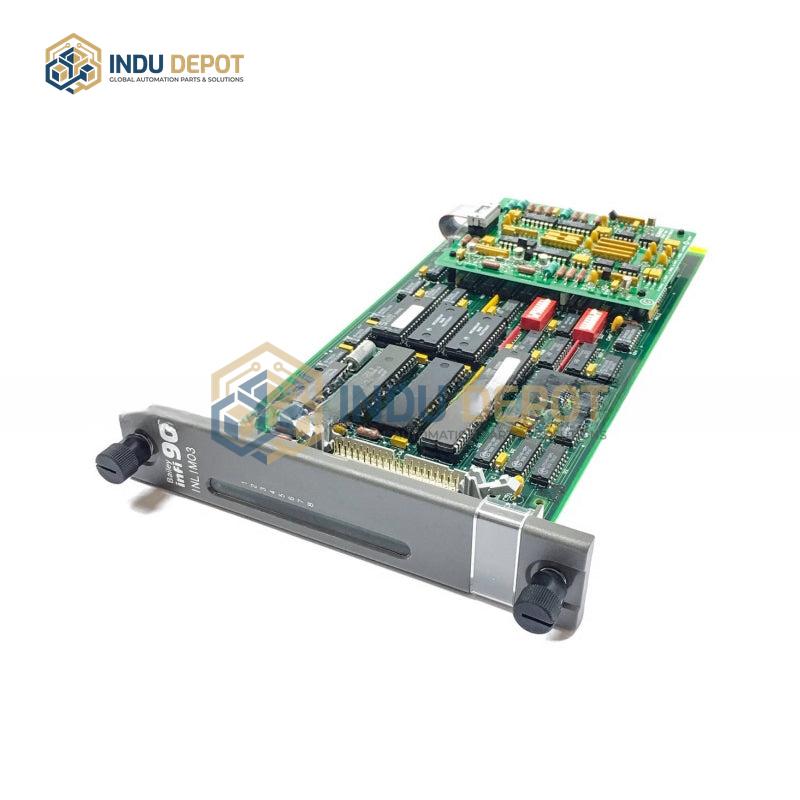

ABB INLIM03 Loop Interface Module

Description

The ABB INLIM03 Loop Interface Module is a specialized component designed for industrial automation applications. Key technical specifications include a maximum power consumption of 1.2W under rated conditions. It features multiple power supply paths: the UL communication power supply provides 7.5V DC via power jumper, with a maximum current draw of 50mA and typical draw of 40mA; the segment loop power supply delivers 24V DC via power jumper, with a maximum current draw of 1A and minimum 0A when no peripheral devices are connected; and a 24V DC sensor power supply derived from the segment loop power supply. The module has robust electrical isolation, with a 500V AC, 50Hz isolation test voltage lasting 1 minute between the 7.5V bus logic power and 24V I/O power, between 7.5V bus logic power and functional ground, and between 24V I/O power and functional ground. It uses Inline connector technology for connections, and includes an Inline connector and marker strip as part of its supply package. Operating in a 2-word process data mode, it offers built-in operational diagnostics to detect sensor power short circuits and overloads, ensuring reliable performance in industrial control environments.
