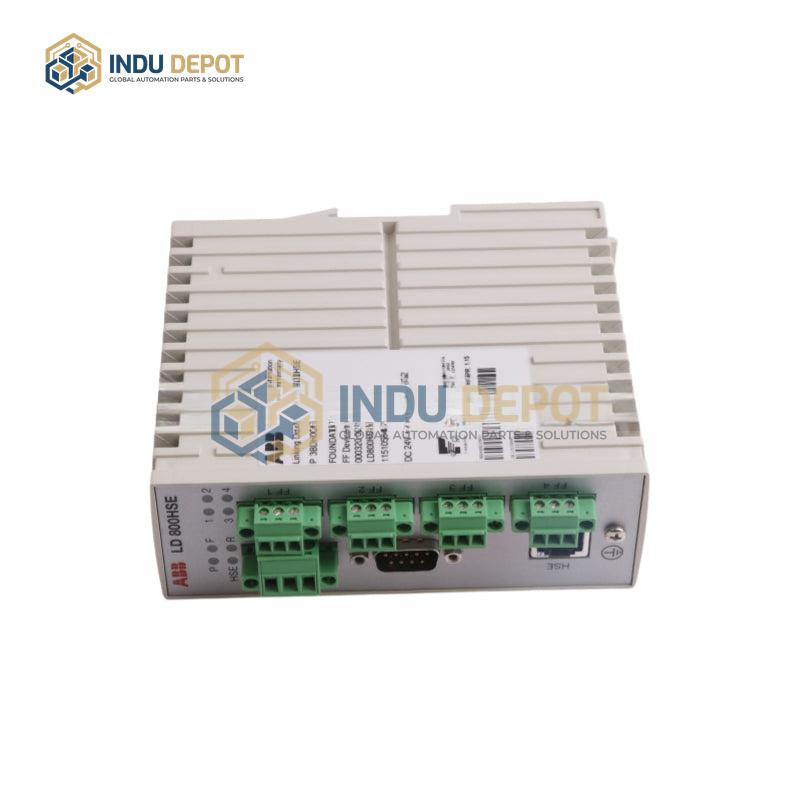

ABB LD 800HSE Linking Device
Description
ABB LD 800HSE Linking Device is a FOUNDATION Fieldbus-based gateway that connects FF H1 field device networks to FF HSE high-speed Ethernet subnets, enabling seamless data exchange between field devices and supervisory control systems.
| Specification | Value |
|---|---|
| Power Supply | 24V DC |
| Communication Interfaces | Ethernet 10BASE-T/100BASE-TX (1 channel, auto-sensing 10/100 Mbit/s), 4 FF H1 bus channels (31.25 kbit/s, transformer-coupled, isolated), RS-232 (9-pole SubD male, 115.2 kbit/s), RS485 |
| Input | 8 digital inputs, 4 analog inputs |
| Output | 6 digital outputs, 2 analog outputs |
| Operating Temperature Range | -20 to 70 degrees Celsius; extended range -40 to 85 degrees Celsius available |
| Protection Rating | IP20 |
| Supported Protocols | Modbus TCP/IP, Ethernet/IP, PROFIBUS DP, DeviceNet, FOUNDATION Fieldbus H1/HSE |
| Dimensions | 150mm x 131mm x 111mm; compact version 47mm x 131mm x 111mm available |
Key Features:
- High precision and reliability with advanced sensor technology and digital processing
- Multi-protocol support for easy integration with diverse control systems
- Redundancy configuration support with failover monitoring for high system availability
- Modular design for easy expansion, maintenance, and integration into existing networks
- Built-in diagnostic functions for simplified troubleshooting and system integrity checks
- Acts as link master and SM time publisher for each connected H1 channel
Applications:
- Industrial process control and automation systems
- Energy sector including oil and gas extraction, petrochemical production, and power plants
- Water treatment and environmental monitoring systems
- Manufacturing production automation and equipment monitoring
- Building automation systems
Related Models:
- ABB LD 800HSE EX (hazardous area version)
- ABB LD 800HSE 3BDH000320R0101
- ABB LD 800HSE 3BDH000320R02
