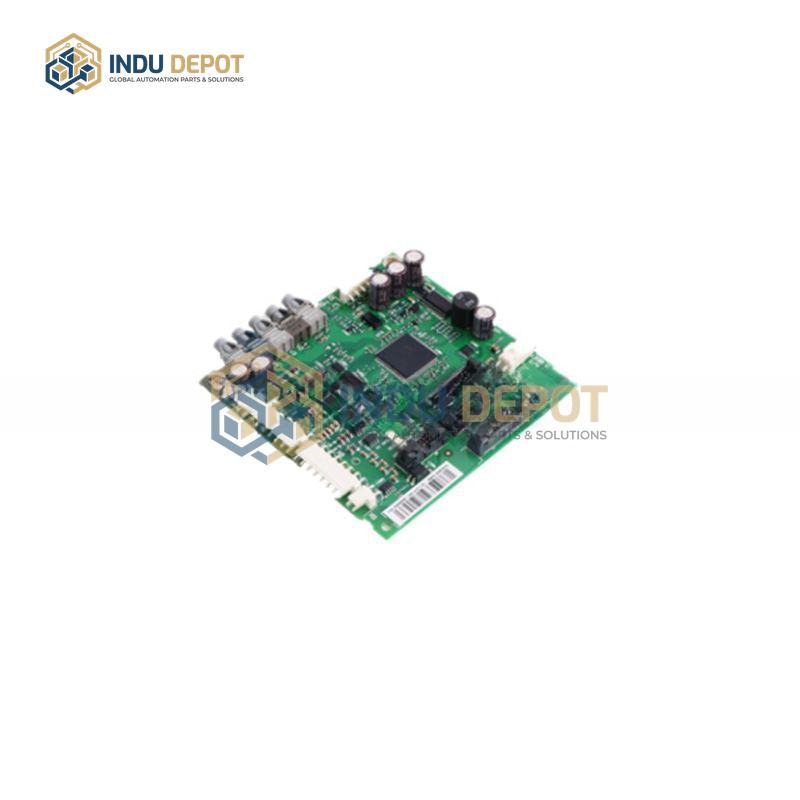

ABB LDMUI-01A Industrial I/O Module

Description

ABB LDMUI-01A Industrial I/O Module is a high-performance, multi-functional module belonging to the ABB LDMUI product series, designed for efficient power management and data handling in industrial automation systems. It supports flexible input power options, including 100-240V AC, 230V AC, or 24V DC, with a 50 mA input current, and delivers a stable 24V DC output with a maximum total output current of 40A, and 500 mA per individual channel. The module operates in temperature ranges of either -20 degrees Celsius to 60 degrees Celsius or -10 degrees Celsius to 50 degrees Celsius, and features an IP67 protection rating for reliable performance in harsh industrial environments. It comes in compact form factors, with common dimensions of 220mm x 160mm x 80mm or 150mm x 110mm x 40mm, and weighs approximately 0.5 kg. Equipped with a 7-inch color touchscreen with 800 x 480 resolution, it offers an intuitive user interface for trend analysis, alarm, and event management. It supports multiple digital and analog I/O interfaces to connect various sensors and devices, and is compatible with industry-standard communication protocols including Modbus, Profibus, and Ethernet/IP. Key features include high-precision measurement of electrical parameters such as voltage, current, and power, automatic verification and calibration for remote or unmanned operation, and integrated over-voltage, under-voltage, and over-current protection. Ideal applications include industrial control systems, motor control, measurement unit interface boards, and power supply conversion for automation equipment.
