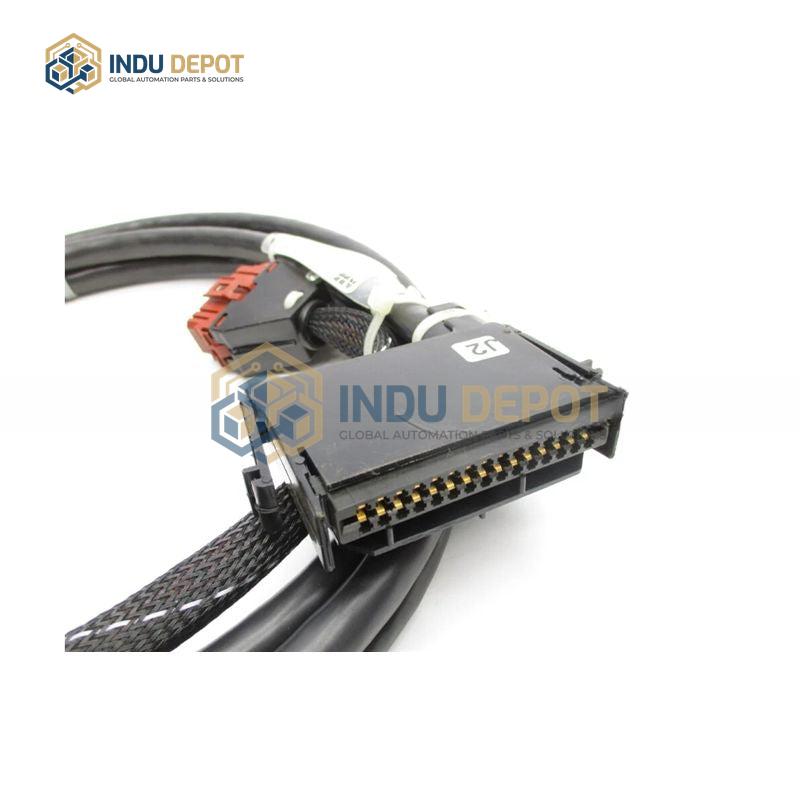

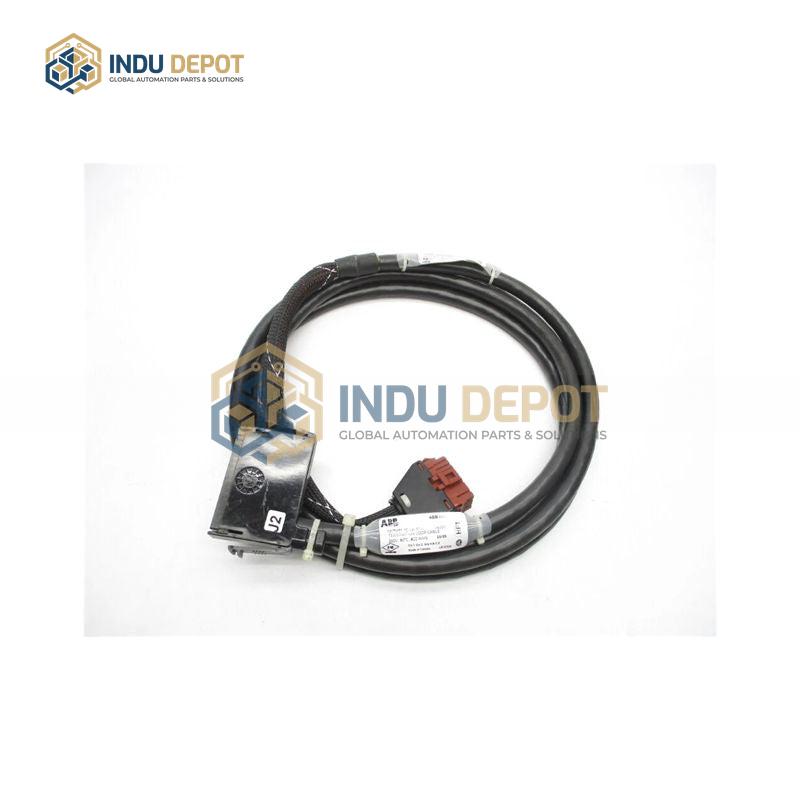

ABB NKTU01-10 Infi 90 Loop Termination Cable
Description
ABB NKTU01-10 Infi 90 Loop Termination Cable is a factory-prefabricated industrial control cable designed for ABB Infi 90 distributed control systems (DCS), providing reliable electrical connections between related modules.
| Specification | Value |
|---|---|
| Rated Voltage | 300V AC / 300V DC |
| Rated Current | 3.0 A per conductor |
| Contact Resistance | ≤ 20 mΩ |
| Insulation Resistance | ≥ 1000 MΩ at 500V DC |
| Withstand Voltage Test | 1500V AC for 1 minute |
| Wire Gauge | 24 AWG (0.2 square millimeters) |
| Conductor Count | 4 conductors (standard configuration) |
| Capacitance | ≤ 80 pF per meter |
| Shielding Structure | Tinned copper braid, coverage ≥85% |
| Operating Temperature | -20 to 80 degrees Celsius |
| Storage Temperature | -40 to 90 degrees Celsius |
| Bending Radius | ≥5 times cable diameter |
| Protection Rating | IP20 for cabinet internal use |
| Cable Length | 10 feet |
| Conductor Material | High-purity tinned copper stranded wire |
| Connector Contact Material | Phosphor bronze with 0.8 micrometer gold plating |
| Connector Insertion/Extraction Life | ≥500 cycles |
| Sheath Material | Flame-retardant PVC, UL 94 V-0 compliant |
Key Features:
- Factory prefabricated with dedicated connectors, 100% electrically tested to reduce on-site wiring work and improve installation efficiency
- Self-locking connector buckle prevents loosening from vibration
- Color-coded PVC insulation for easy conductor identification
- Flame-retardant, wear-resistant, and chemical-resistant sheath suitable for harsh industrial environments
- Compatible with ABB control modules and terminal board interfaces for modular layout support
Applications:
- Connection between adjacent ports on the same module in ABB Infi 90 DCS
- Industrial automation control systems including power automation, petrochemical, metallurgy, water treatment, and automated manufacturing lines
Related Models:
- NKTU01-15
- NKTU01-20
- NKTU01-25
- NKTU01-30
- NKTU02-10
- NKTU11-10
