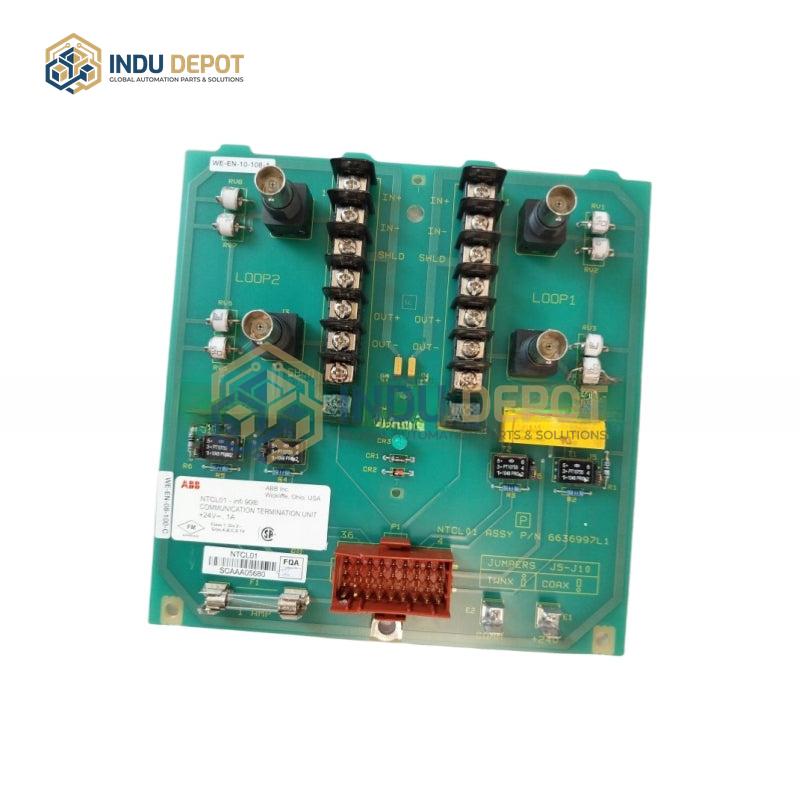

ABB NTCL01 Communication Link Termination Unit
Description
ABB NTCL01 Communication Link Termination Unit is a communication-specific terminal board or bus adapter module designed for industrial automation systems, part of the ABB Bailey product line. It facilitates stable, standardized connections between communication loops and interface modules to support reliable data transmission.
| Specification | Value |
|---|---|
| Wiring Type | Screw terminals |
| Current Carrying Capacity | Maximum 10A |
| Voltage Range | Maximum 250V |
| Construction Material | High-strength flame-retardant plastic |
| Compatibility | ABB Bailey modules and controllers |
Key Features:
- Terminates connections between INFI-NET or plant loop communication circuits and interface modules such as INNIS01 and INLIM03
- Provides termination points for network interface slave modules and loop interface modules
- Supports connection via twisted pair or coaxial cables, with cable type selectable via jumper settings
- Industrial-grade design for stable operation in high-vibration, high-current industrial environments
- Modular structure for easy on-site installation, replacement, and troubleshooting
Applications:
- Industrial automation control systems for centralized wiring of controllers, sensors, and actuators
- Production lines and automated equipment requiring consistent, reliable data transmission
- Power distribution and chemical manufacturing facilities for secure signal and power connections
Related Models:
- NTCL01-A
- NTMF01
- NTCS04
