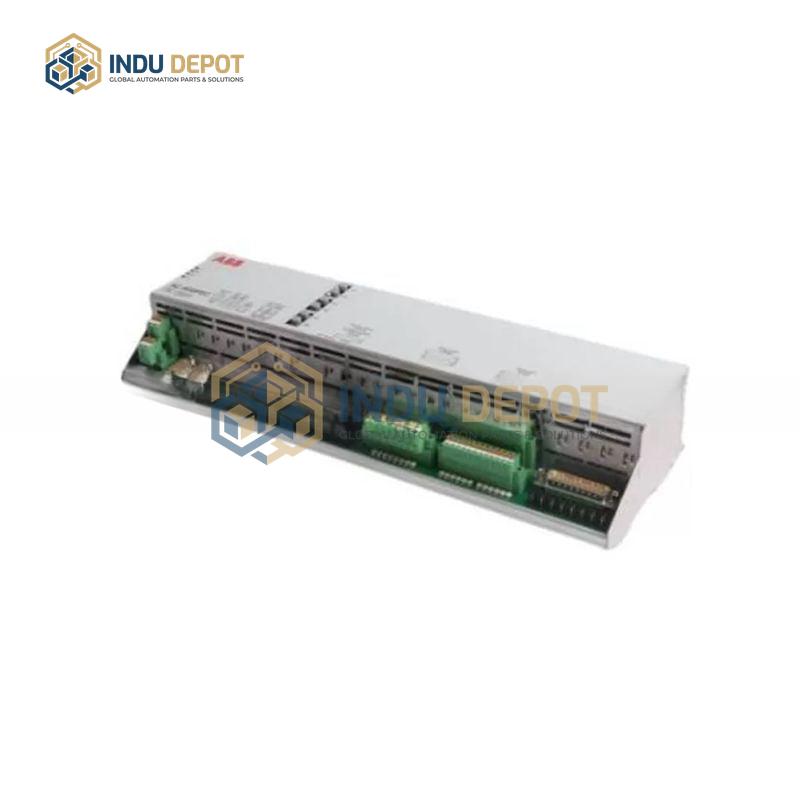

ABB PCD231 Converter Control Interface for Industrial Systems
Description
ABB PCD231 Converter Control Interface is a core control and interface module from the ABB AC 800PEC / PEC80-CCI series, designed for high-speed control and data collection in power, energy, and industrial automation systems. A common sub-model is PCD231B101, with order number 3BHE025541R0101.
| Specification | Value |
|---|---|
| Power Supply | 24V DC |
| I/O Configuration | 16 DI + 16 DO (relay contacts) |
| DI Voltage | 24V DC / 48V DC / 125V AC optional |
| DO Load | 5A / 250V AC (relay) |
| Response Time | ≤ 10 ms |
| Isolation Voltage | 1500V AC between channels |
| Operating Temperature | -20 to 60 degrees Celsius |
| Weight | Approximately 0.91 kg |
| Communication Protocols | S100IO bus, Modbus, PROFIBUS, CAN, Ethernet, RS232/485 |
Key Features:
- High-speed control optimized for power and excitation systems, supporting fast closed-loop regulation
- High channel-to-channel isolation for strong electromagnetic interference resistance, suitable for harsh industrial environments like power plants
- Multi-protocol compatibility simplifies system integration and remote monitoring
- Built-in fault diagnosis, alarm, and status monitoring functions to reduce maintenance complexity
- Modular design allows expansion of I/O and communication modules to match different system scales
Applications:
- Power industry: Generator excitation control, substation automation, DCS systems
- Energy sector: Wind, hydro, and thermal power control, grid stability control
- Industrial automation: High-speed drive control, metallurgy, chemical process control
- Transportation: Signal systems, rail traction control
Related Models:
- PCD231B101
- CI853K01 3BSE018103R1
- PM851K01 3BSE018168R1
- CI854AK01 3BSE030220R1
