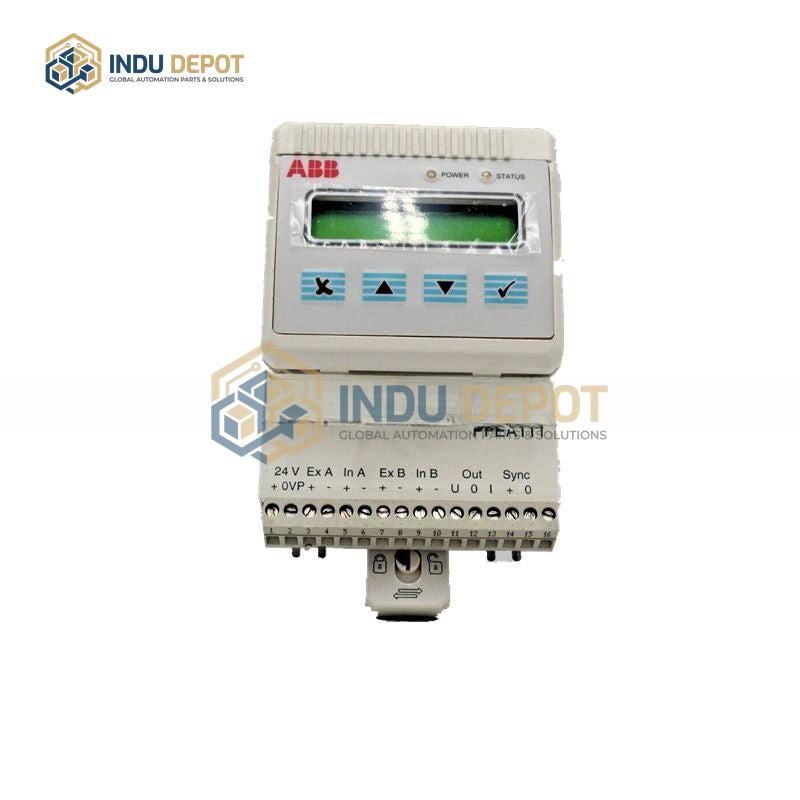

ABB PFEA111-20 Electronic Tension Controller
Description
ABB PFEA111-20 Electronic Tension Controller is a compact, high-precision electronic tension control module designed for industrial tension measurement and feedback control, serving as an intelligent bridge between tension sensors and upper control systems.
| Specification | Value |
|---|---|
| Input Voltage | DC 24V (range 18-36V) |
| Output Signal | 0-10V or 4-20mA, maximum load 5A |
| Power Consumption | 7.5W |
| Working Temperature | -40 to 70 degrees Celsius |
| Dimensions | 120mm x 80mm x 30mm |
| Weight | 0.2kg |
| Protection Rating | IP20 (requires cabinet installation) |
| Control Accuracy | ±0.1% |
Key Features:
- High-precision dynamic control with closed-loop algorithm and millisecond-level response, real-time compensation for tension fluctuations
- Flexible multi-mode control, supporting seamless switching between manual, automatic, and constant tension modes, plus simulation mode for pre-verification
- Industrial-grade design with Profibus and Modbus protocol integration, EMC compliance, and built-in self-diagnostic system for fault detection and data logging
- Dual-channel tension sensor input with real-time SUM (A+B) and DIFF (A-B) display, plus digital filtering function
Applications:
- Metal processing, including stainless steel cold rolling and aluminum foil slitting
- Paper making, printing, and coating production lines
- Textile and packaging machinery
- New energy material processing, such as lithium battery diaphragm coating and photovoltaic backsheet slitting
