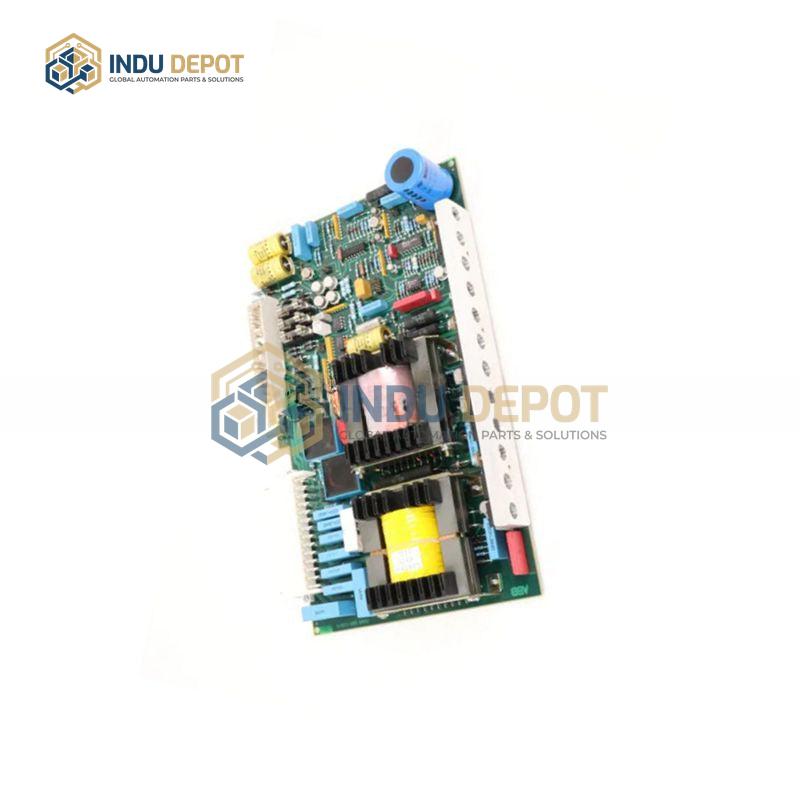

ABB PFSK104 YM322001-EB Control Board
Description
ABB PFSK104 YM322001-EB Control Board is a control board module and control pulse card module designed for industrial automation systems, featuring high performance and robust reliability for critical operations.
| Specification | Value |
|---|---|
| Processor | ARM Cortex-A9, 1 GHz high-performance multi-core processor |
| Memory | 512 MB RAM, 2 GB Flash, supports expandable storage |
| I/O Interfaces | 16-channel digital input/output, 8-channel analog input/output, expandable to 64 channels |
| Communication Interfaces | Dual redundant Ethernet, RS-485, Profibus, Modbus, supports multiple industrial protocols |
| Power Supply | 24 VDC ±10%, supports redundant power input |
| IP Rating | IP20 (control board body), optional IP65 protective enclosure |
| Dimensions | 140 mm × 100 mm × 30 mm, compact design |
| Weight | 0.5 kg, lightweight design |
| Operating Temperature Range | -20 to 60 degrees Celsius |
| Safety Certification | Compliant with IEC 61508 SIL 2 safety standards |
Key Features:
- High-performance processor enables real-time multitasking for precise control operations
- Modular design supports hot-swappable I/O modules for easy expansion and maintenance
- Dual redundant Ethernet communication ensures high system availability and uninterrupted operation
- Compliant with IEC 61508 SIL 2 safety standards, suitable for critical safety applications
- Wide operating temperature range allows use in harsh industrial environments
Applications:
- Industrial automation systems for process control and optimization
- Machinery equipment for precise motion control and operation monitoring
- Energy management systems for monitoring and controlling energy production and distribution
- Petroleum refining, cement mining, papermaking, and shipbuilding industries
Related Models:
- ABB PFSK101
- ABB PFSK102
- ABB PFSK103
- ABB PFSK105
