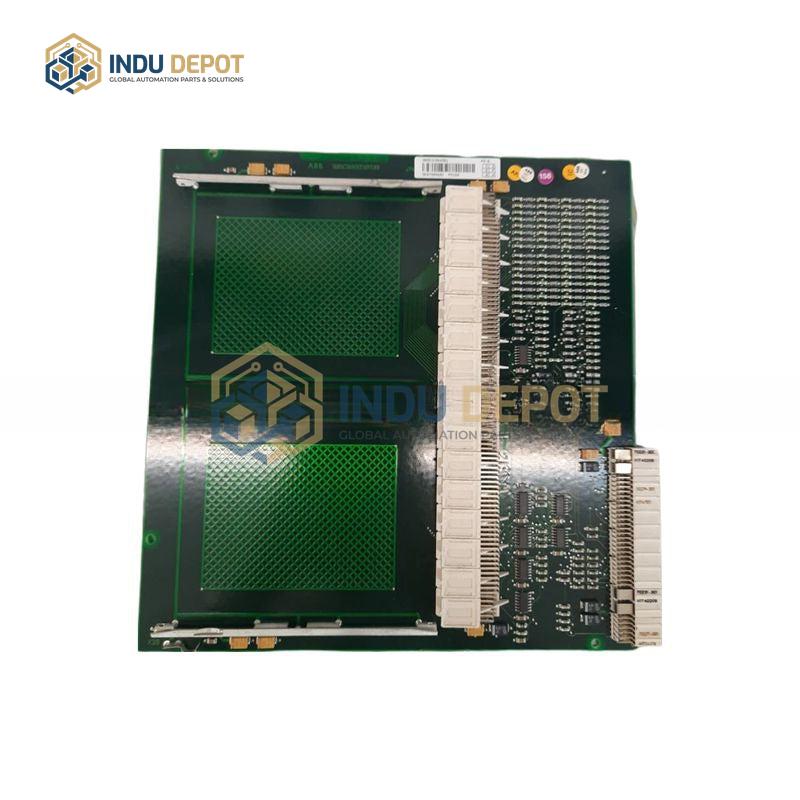

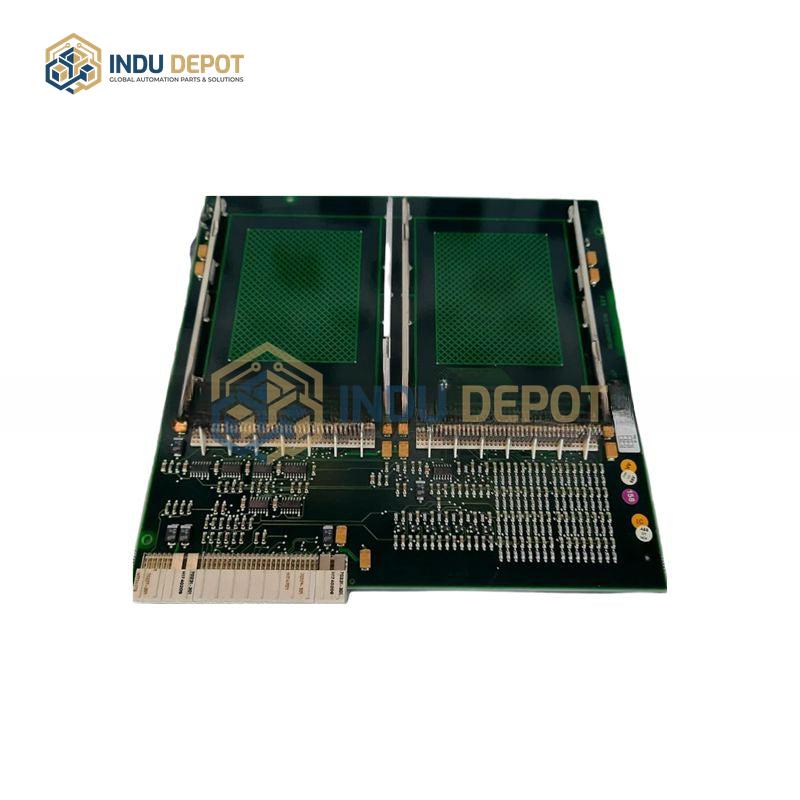

ABB PM154 3BSE003645R1 Advant Controller

Description

The ABB PM154 3BSE003645R1 Advant Controller is a TMR (Triple Modular Redundancy) monitored digital output module with a turquoise green color code, designed for industrial automation systems. It operates at a nominal voltage of 24 VDC, with a recommended working range of 16–30 VDC and a maximum voltage tolerance of 36 VDC. The module features 16 digital output channels, each capable of delivering a rated current of 0.7 amps per point, with a 4.8 amp surge capacity for 10 milliseconds. Key electrical specifications include a logic power draw of less than 10 watts, a minimum required load of 30 mA, and a load leakage current of 4 mA. Built-in self-protection features for overvoltage, overtemperature, and overcurrent eliminate the need for field terminal fuses. It offers 1500 VDC point-to-point isolation and a minimum short-circuit detection threshold of less than 5 ohms in the off state. Status indicators include per-point open/closed and load lights, plus module-level pass, fault, and active indicators. The module also incorporates reverse diodes for inductive kickback (back EMF) protection, with typical on-state voltage drops varying by connection type: less than 1.0 VDC at 500 mA and 1 A on the backplane, increasing to less than 2.0 VDC and 2.5 VDC with a 10-foot external cable, and less than 2.5 VDC and 6.0 VDC with a 99-foot external cable. Additional performance specs include an output diagnostic fault coverage rating of 2, a minimum output switching rate of 1 scan every 100 milliseconds, and diagnostic fault durations of 2 milliseconds and 500 microseconds.
