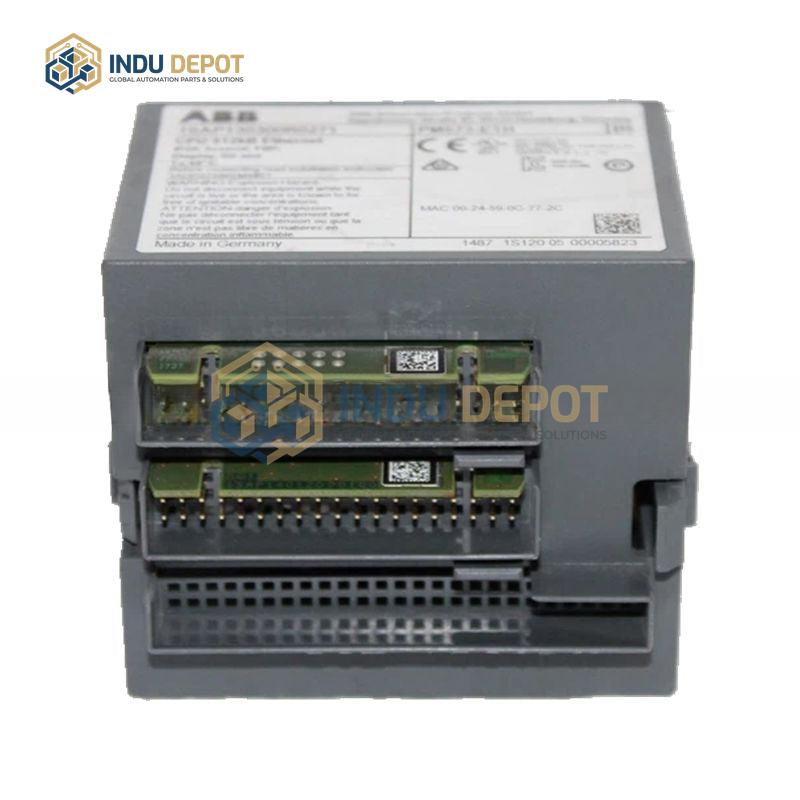

ABB PM592-ETH Processor Industrial Automation Controller
Description
ABB PM592-ETH Processor Industrial Automation Controller is a high-performance programmable logic controller (PLC) from the ABB AC500 series, designed to build reliable, efficient control architectures for complex medium and large-scale automation projects. It serves as a core control unit that seamlessly connects industrial equipment, processes complex control logic, and enables high-speed data interaction.
| Specification | Value |
|---|---|
| Order Number | 1SAP150200R0271 |
| Core Performance | 0.000002 ms processing time, floating point operation speed 0.002 microseconds per step |
| Memory Configuration | 4MB user program memory, 5632kb user data memory, 4GB non-volatile flash memory |
| Power Supply | 20.4 – 28.8V DC |
| Dimensions | 76mm x 67.5mm x 72mm |
| Weight | 0.137kg |
| Operating Temperature | 0 to 60 degrees Celsius |
| Protection Rating | IP20 |
| Maximum I/O Points | 320 digital points / 160 analog points |
Key Features:
- High-efficiency communication with 1x 10/100Mbps adaptive Ethernet interface (supports PROFINET, Modbus TCP, IEC 60870-5-104) and 2 configurable RS232/485 serial ports (supports Modbus RTU)
- Flexible expansion with support for up to 10 S500/S500-eCo I/O modules, hot-swap capability, and 1x FBP interface for PROFIBUS DP, CANopen, EtherCAT expansion
- User-friendly programming and debugging via Codesys environment, supports multiple programming languages, built-in LCD display, function keys, and diagnostic tools
- Multi-task processing with cycle/time-triggered execution, and SD card support for program backup and data storage
Applications:
- Smart factory automated production lines, energy power monitoring systems, transportation automation systems
- Chemical processing, packaging and printing, steel and metal manufacturing
- Wind power, water treatment, building automation and data acquisition systems
Related Models:
- ABB PM573-ETH
- ABB PM591-ETH
- ABB PM583-ETH
