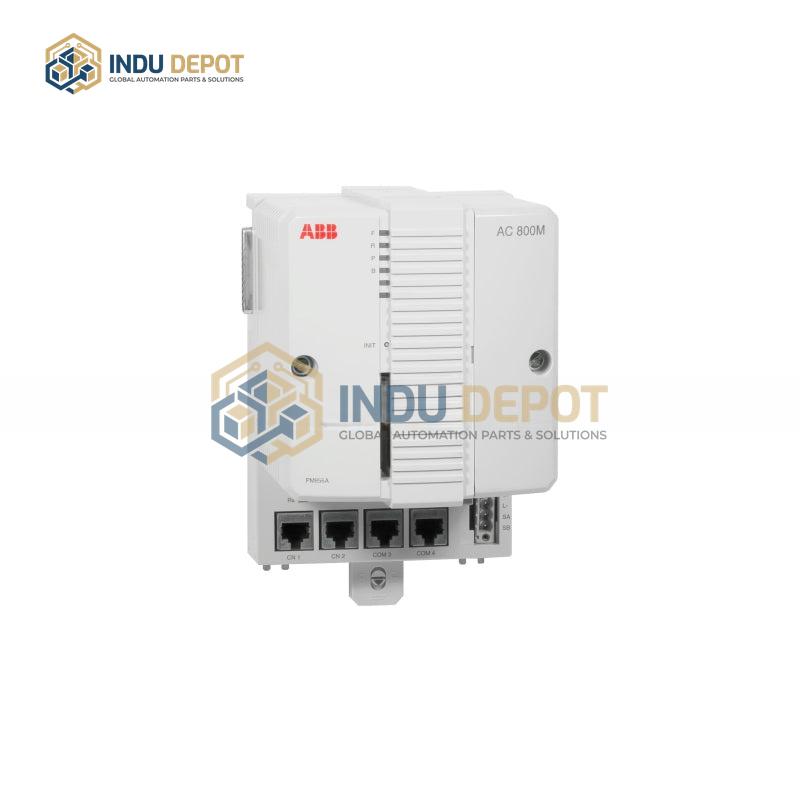

ABB PM856A Processor Unit

Description

The ABB PM856A Processor Unit is a series of industrial control devices designed for all scales of industrial control scenarios, with variants like the PM856AK01 3BSE066490R1 belonging to the ABB AC 800M series. This redundant CPU unit supports dual-system hot standby, ensuring high reliability for critical industrial operations. It features a 4-core industrial-grade processor with a 2.0GHz clock speed, integrated floating-point unit, and 8000 MIPS computing capacity, enabling parallel multi-task processing and robust data calculation capabilities suitable for digital control applications including position control, temperature control, and CNC systems.

Its storage configuration includes 16GB eMMC program memory (supporting online firmware upgrades and program backup), 4GB DDR4 RAM (expandable to 8GB), and 256MB non-volatile storage for retaining critical process data without power. Communication interfaces are comprehensive: 2 PROFINET IRT interfaces, 2 EtherNet/IP interfaces, 1 Modbus-TCP master interface for industrial bus connectivity; support for ABB proprietary PRONETA internal bus to connect I/O modules up to 1000 meters; plus 1 USB 3.0 and 1 RS232 interface for debugging and monitoring. With user-friendly interfaces and ladder logic programming familiar to engineering staff, it reduces external wiring, shortens system design cycles, and simplifies maintenance, making it ideal for multi-variety, small-batch production environments.
