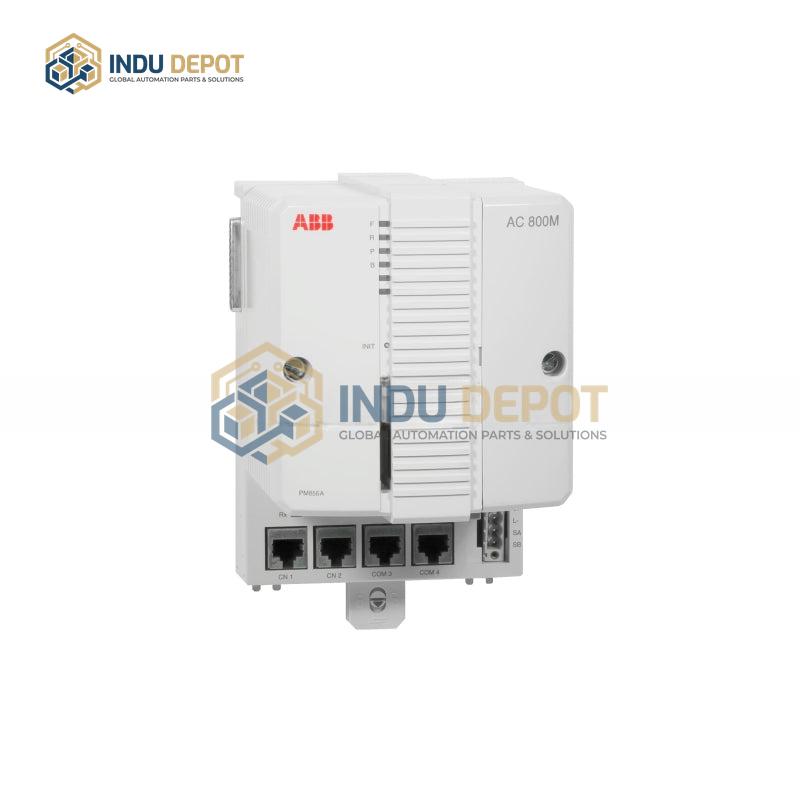

ABB PM856K01 Processor Unit Kit
Description
ABB PM856K01 Processor Unit Kit is a mid-range controller in the ABB AC800M series, part of the Compact Control Builder product line, designed for medium-scale industrial automation control applications.
| Specification | Value |
|---|---|
| Order Number | 3BSE018105R1 (may vary by version) |
| Processor | 32-bit RISC, dual-core 800MHz |
| Memory Capacity | 16MB RAM (expandable to 128MB) |
| Communication Interfaces | 2×RS232/RS485, 1×10/100Mbps Ethernet |
| Maximum I/O Points | 1024 |
| Programming Environment | Control Builder M Professional |
| Operating Temperature | -20 to 60 degrees Celsius |
| Power Supply | 24VDC ±10% |
Key Features:
- Supports online program modification and up to 16 PID control loops, with scan cycles as fast as 10ms
- Dual redundancy design with hot-swap capability, MTBF over 300,000 hours
- Compatible with 12 communication protocols including Profibus-DP and Modbus RTU/TCP, with built-in OPC UA server for IT/OT integration
- Intelligent diagnostic system with real-time CPU and memory monitoring, and visual fault code indicators
Applications:
- Process control in chemical, power, and manufacturing industries
- Machine automation and SCADA system integration
- Critical infrastructure such as nuclear power plants and smart grids
Related Models:
- PM851K01
- PM860
- PM861
- PM862K01
- PM856AK01
