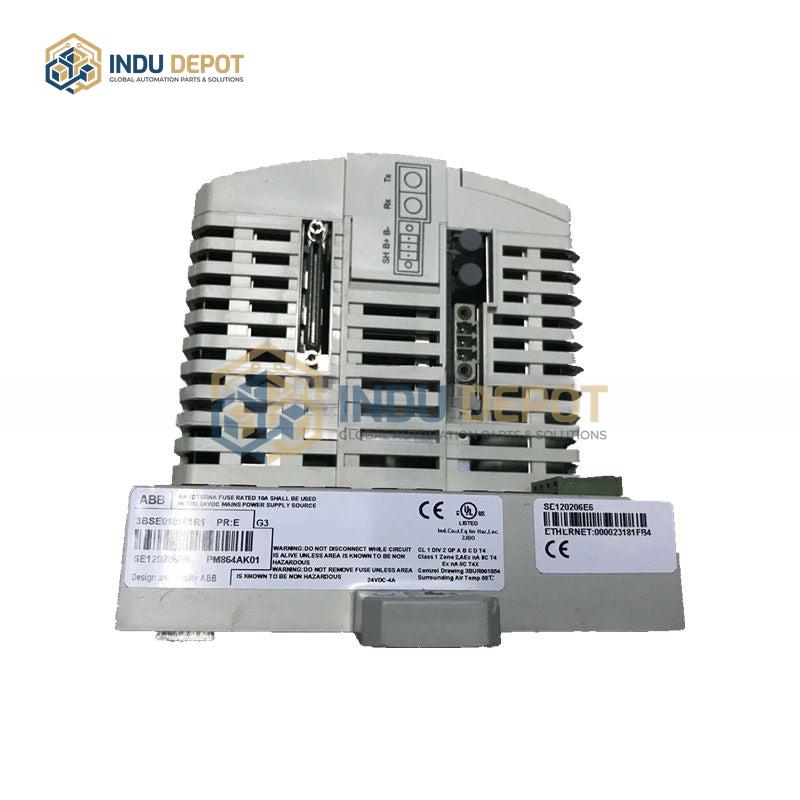

ABB PM864AK01 Processor Unit Module Industrial CPU Card
Description
ABB PM864AK01 3BSE018161R1 Processor Unit Module is a high-performance core processor unit from the ABB AC 800M series, designed for industrial automation and control systems. It serves as the central processing component, integrating support for PLC I/O modules, digital and analog signal processing to enable real-time control and data management.
| Specification | Value |
|---|---|
| Processor | Dual-core PowerPC, up to 1 GHz; base model uses 400 MHz PowerPC 604e/Motorola PowerPC 604 |
| Memory | Up to 2 GB total; base configuration includes 512 MB SDRAM, 256 MB Flash |
| Power Supply | 24 VDC |
| Operating Temperature | -10 to 55 degrees Celsius; extended range up to -25 to 70 degrees Celsius |
| Storage Temperature | -40 to 85 degrees Celsius |
| Maximum Power Consumption | Up to 40 watts |
| Communication Interfaces | Ethernet/IP, PROFINET, MODBUS, RS-485, RJ45 ports |
Key Features:
- High performance processing for complex control logic and multi-task parallel execution
- Redundant design options for CPU, power, and communication, with MTBF over 200,000 hours for reliable operation
- High scalability with support for multiple I/O modules and industrial communication protocols
- Built-in security features including access control, encrypted communication, and compliance with IEC 61508 SIL3 standard
- Modular design for easy installation, maintenance, and step-by-step system expansion
Applications:
- Industrial automation for production lines, factory equipment, and process control
- Power system monitoring and control for generators, transformers, and distribution networks
- Manufacturing sectors including automotive, food and beverage, and packaging
- Building automation for lighting, HVAC, and security systems
- Energy industry applications for power plants, substations, and offshore platforms
Related Models:
- PM864AK01-eA 3BSE018161R2
- PM861AK01 3BSE018157R1
- PM866K01 3BSE050198R1
- PM856K01 3BSE0181048R1
