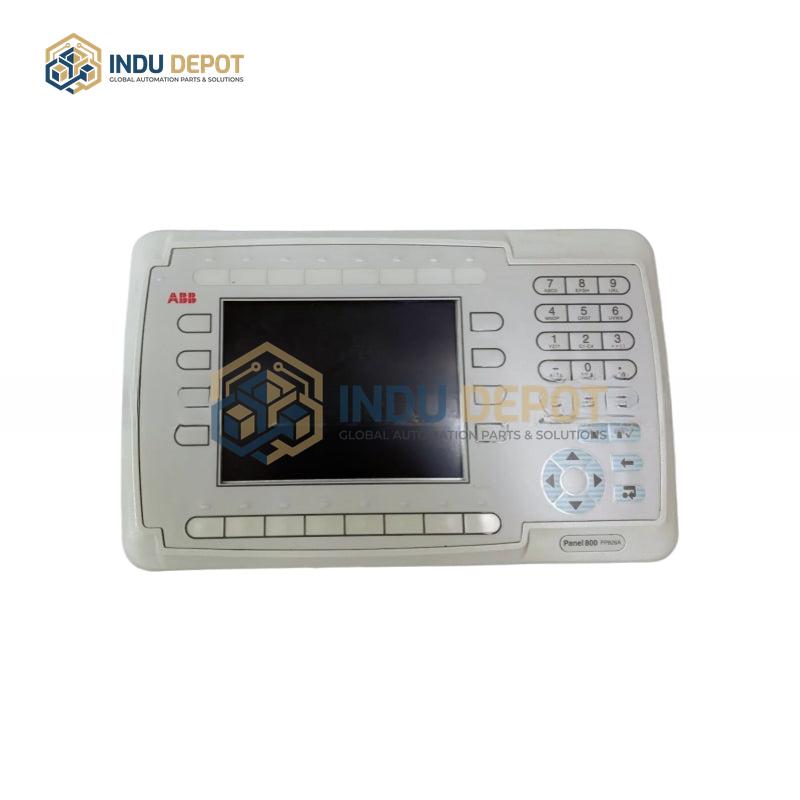

ABB PP825A Touch Panel
Description
ABB PP825A Touch Panel is a human-machine interface (HMI) touch panel accessory for the ABB AC 800M series PLC and Panel 800 series, designed to enable PLC programming, control, monitoring, and parameter setting operations in industrial environments.
| Specification | Value |
|---|---|
| Display Size | 5.7 inches |
| Resolution | 320 x 240 pixels |
| Touchscreen Type | Resistive |
| Display Type | LCD |
| Viewing Angle | 70 degrees left/right, 70 degrees up/down |
| Brightness | 250 candelas per square meter |
| Contrast Ratio | 500:1 |
| Response Time | 10 milliseconds |
| Operating Temperature | -20 to 55 degrees Celsius |
| Storage Temperature | -25 to 65 degrees Celsius |
| Humidity | 0% to 95%, non-condensing |
| Protection Rating | IP65 |
| Weight | 0.4 kilograms |
| Communication Interfaces | RS232, RS485, Ethernet |
Key Features:
- IP65 protection rating for reliable operation in harsh industrial environments
- Supports multiple communication interfaces for easy system integration
- Configurable via ABB Panel Builder tool with pre-integrated templates and a Windows-compatible interface
- Resistive touchscreen for accurate operation even with gloves or styluses
- Wide operating temperature range to suit diverse industrial settings
Applications:
- Food and beverage processing line control and monitoring
- Chemical and pharmaceutical manufacturing process control
- Power generation and water treatment system monitoring
- Metal processing and textile production automation
Related Models:
- ABB PP825A 3BSE042240R3
- ABB Panel 800 Series Version 6.2 Panels
- ABB PP826 Touch Panel
