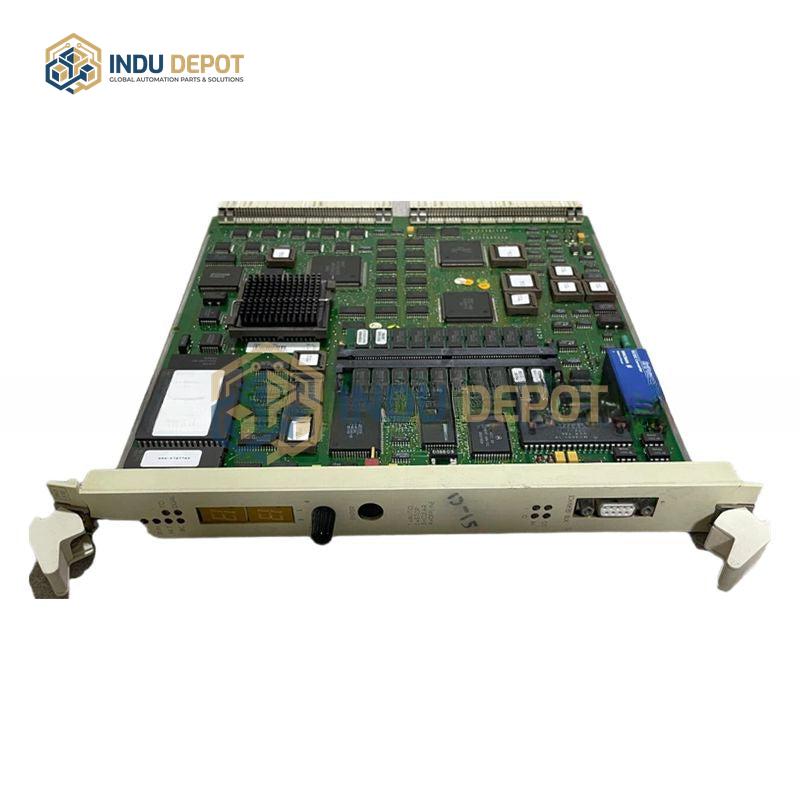

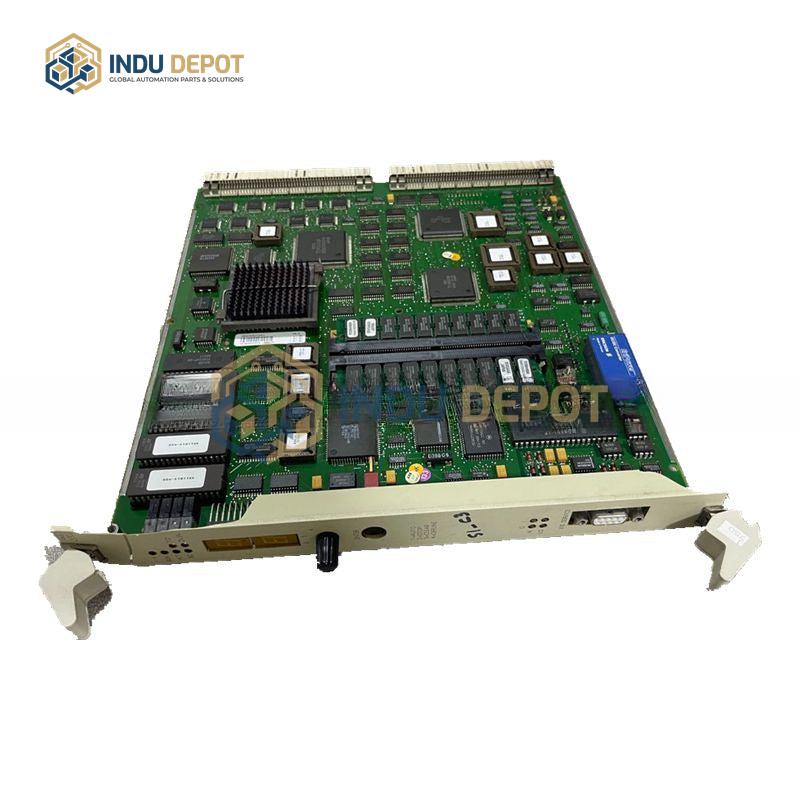

ABB PS861E High Performance I/O DSP Board Control Solution
Description
ABB PS861E High Performance I/O DSP Board Control Solution is a compact, high-speed digital signal processing control board designed for seamless integration with industrial automation systems, providing reliable signal handling and flexible expansion capabilities for complex control tasks.
| Specification | Value |
|---|---|
| Supported CPU Compatibility | AC500, AC500-eCo CPUs |
| Signal Handling Support | Digital, analog, pulse width modulation (PWM), pulse train output (PTO) |
| Max Output Speed | 100 to 200 kHz |
| Power Supply Range | 12 DC to 13 DC volts |
Key Features:
- Slot-based module expansion for fieldbus or serial interfaces
- Supports mixed signal types in a compact form factor to optimize installation footprint
- Seamless integration with ABB AC500 and AC500-eCo CPU platforms
- High-speed output channels for precise, real-time control applications
Applications:
- Compact industrial installations requiring mixed digital and analog signal handling
- Real-time motion control systems using PWM or PTO output signals
- Factory automation lines with modular, scalable I/O needs
