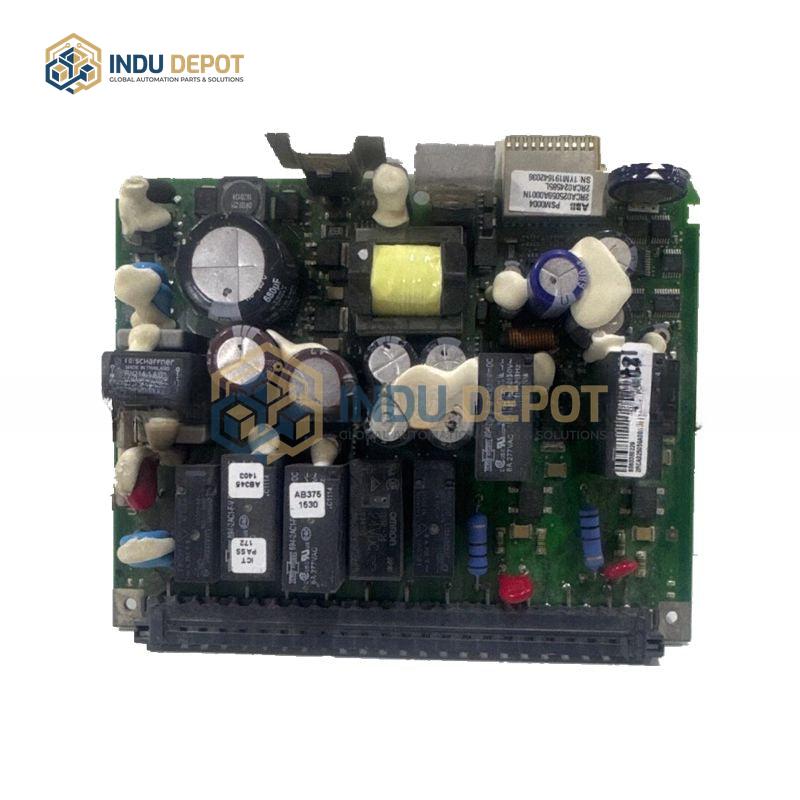

ABB PSM0004 Power Supply
Description
ABB PSM0004 Power Supply is an industrial power module designed to provide stable power for industrial automation systems, featuring high redundancy, wide voltage adaptability, and robust environmental resistance.
| Specification | Value |
|---|---|
| Input Voltage | AC220V/110V (main power), DC12V (battery backup); 70-240V wide input range |
| Output Voltage | 24V DC |
| I/O Channels | Standard: 16DI/16DO/4AI; expandable up to 128 I/O points |
| Communication Protocols | Modbus RTU/TCP, Profibus-DP, CANopen |
| Operating Temperature | -20 to 70 degrees Celsius |
| Protection Rating | IP67 |
| Dimensions | 117mm×114mm×90mm |
| Modulation Method | Pulse Width Modulation (PWM) |
| Output Frequency | 350kHz |
Key Features:
- Dual-action seamless switching mechanism for main and backup power, with millisecond-level switchover to ensure continuous power supply during main power failure
- Wide voltage input range with built-in overvoltage and undervoltage protection, suitable for complex industrial working conditions
- Modular design with hot-swappable capability, allowing flexible configuration of digital and analog I/O channels
- IP67 protection rating for dust, water, and corrosion resistance, enabling stable operation in extreme temperature environments
- High precision voltage measurement with ±0.5% accuracy, and compliance with IEC61000-4-6 electromagnetic compatibility standards
Applications:
- Energy management systems for power quality monitoring and energy consumption data recording
- Intelligent manufacturing, such as automotive component assembly lines for robotic arm control
- Building automation for temperature and humidity monitoring and HVAC control
- Wastewater treatment for water quality parameter monitoring and equipment operation control
