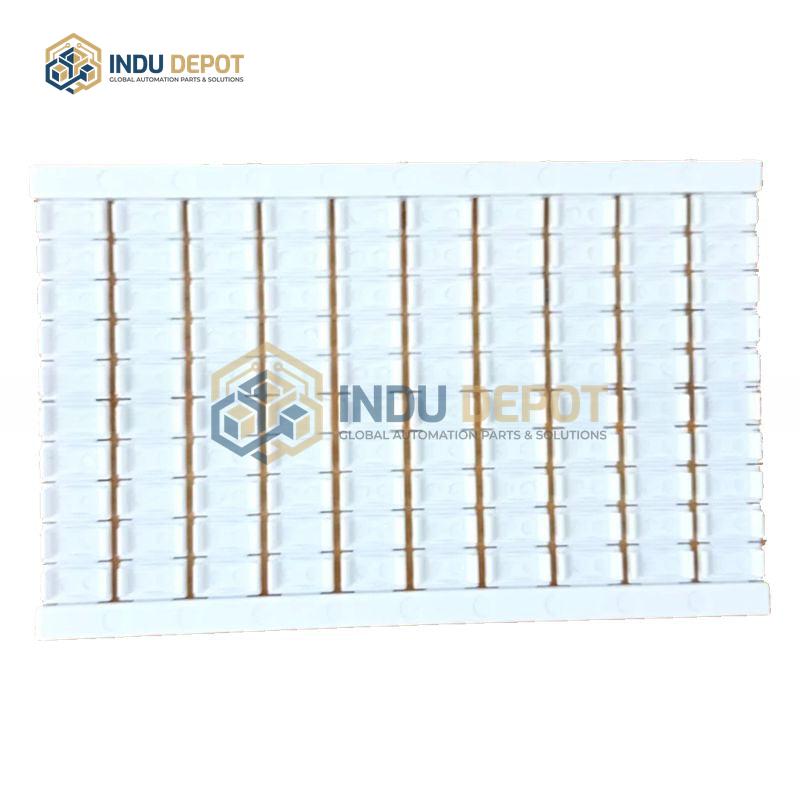

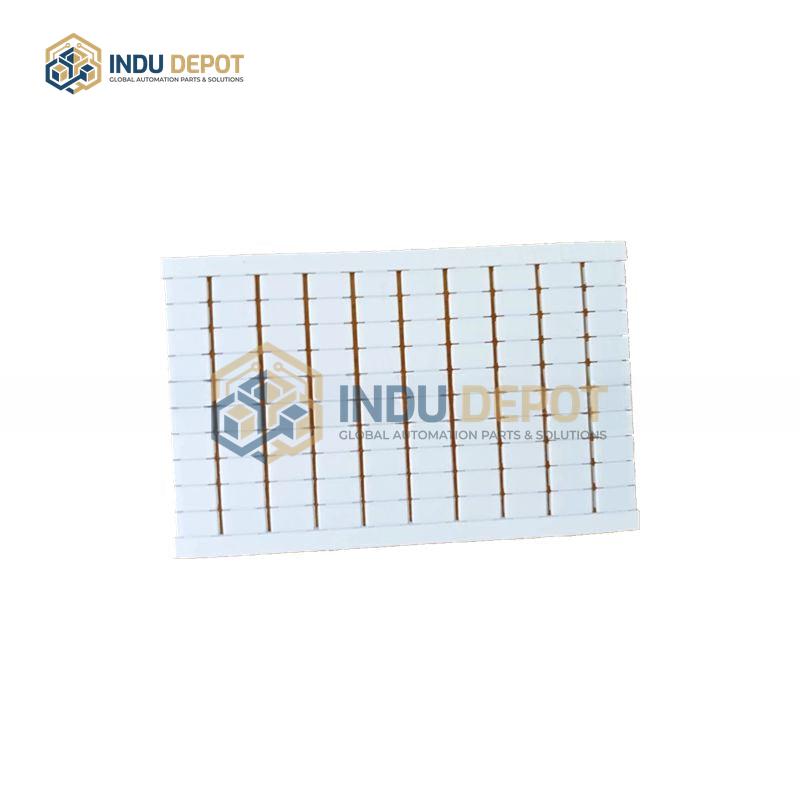

ABB RC610 Terminal Block Markers for Control Systems
Description
ABB REF615 is an advanced intelligent power protection and control device from the ABB Relion® series, designed for medium and high voltage distribution systems, providing comprehensive protection, control, measurement, and monitoring for feeder lines, transformers, and motors.
| Specification | Value |
|---|---|
| Input Voltage | 100-240VAC, 48-250VDC |
| Operating Temperature | -40 to 70 degrees Celsius |
| Storage Temperature | -40 to 85 degrees Celsius |
| Protection Rating | IP54 (front), IP20 (rear) |
| Supported Protocols | IEC 61850, PRP, HSR, Modbus RTU/TCP, DNP3 |
Key Features:
- Drawer-type design for easy installation and maintenance
- Supports underground and overhead cable fault detection (CFD) and high impedance (HIZ) fault detection
- Equipped with 32-bit high-performance processor for millisecond-level signal acquisition and judgment
- Modular structure allows targeted component replacement without full unit replacement
- Built-in LCD display with LED indicators for clear status monitoring
Applications:
- Feeder, transformer, and motor protection in utility and industrial substations
- Medium and high voltage distribution networks, including radial, loop, and network configurations
- Industrial facilities such as cement, metallurgy, petrochemical, and semiconductor plants
- Renewable energy systems with wind and solar power generators
Related Models:
- REF615A_1G
- REF615C-E
- REF615E_E
- REF615K
- REF615D
