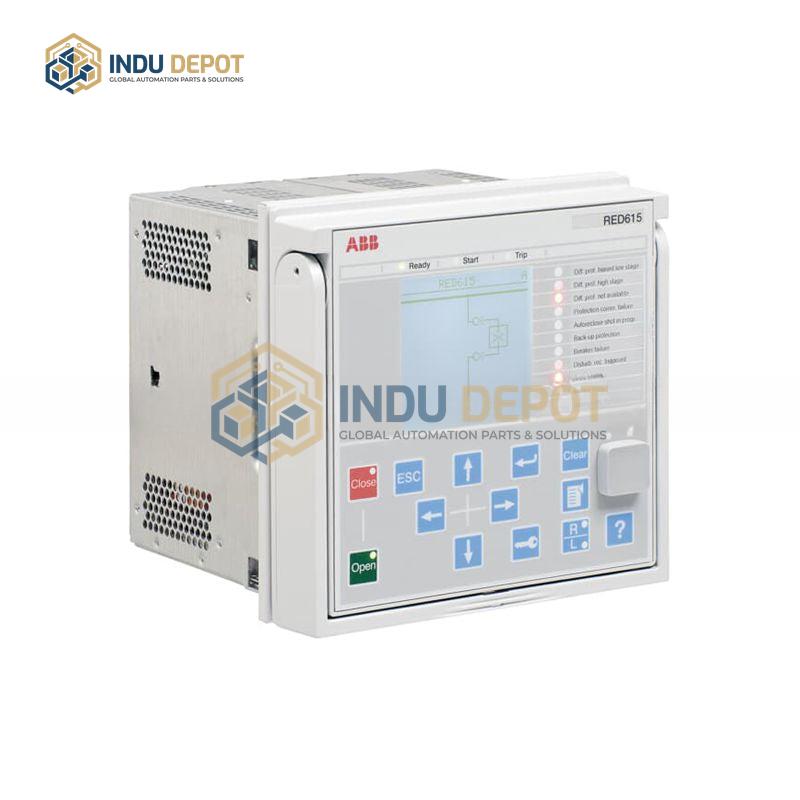

ABB RED615 Feeder Protection and Control Relay
Description
ABB RED615 Feeder Protection and Control Relay is an advanced intelligent power device from ABB’s Relion® 615 Series, designed for protection, control, measurement, and monitoring of feeder lines in power systems.
| Specification | Value |
|---|---|
| Input Voltage Range | 100V – 240V AC |
| Current Range | 1A – 10A |
| Frequency Range | 50Hz – 60Hz |
| Operating Temperature Range | -40 to 85 degrees Celsius |
| Dimensions | 100mm x 50mm x 25mm |
| Supported Communication Protocols | IEC 61850, IEC 60870-5-103, Modbus, DNP3, IEEE 1588 V2 |
Key Features:
- Modular, compact design for easy integration and maintenance
- Comprehensive protection functions including overcurrent, ground fault, phase loss, overvoltage, undervoltage, and line differential protection
- High-precision time synchronization via IEEE 1588 V2
- Configurable standard configurations (A-F, H-J, K-N) with expandable features via PCM600 tool
- Supports high impedance and intermittent ground fault detection
Applications:
- Industrial power systems such as factories, manufacturing plants, and petrochemical facilities
- Public utility substations and medium-voltage distribution networks
- Radial, loop, and mesh distribution networks, including systems with distributed generators
- Backup protection for transformers and other power equipment
