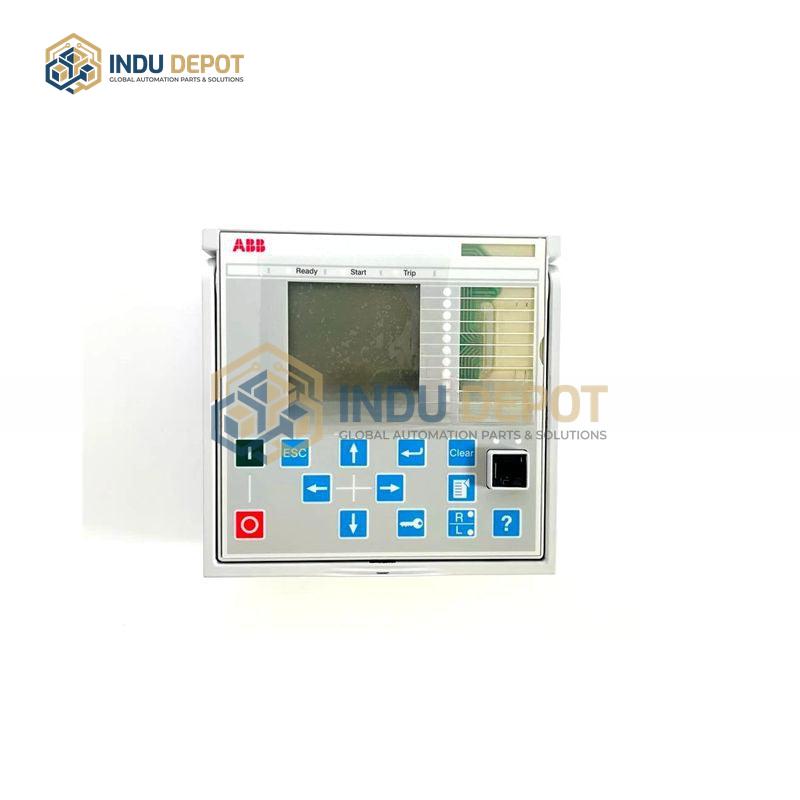

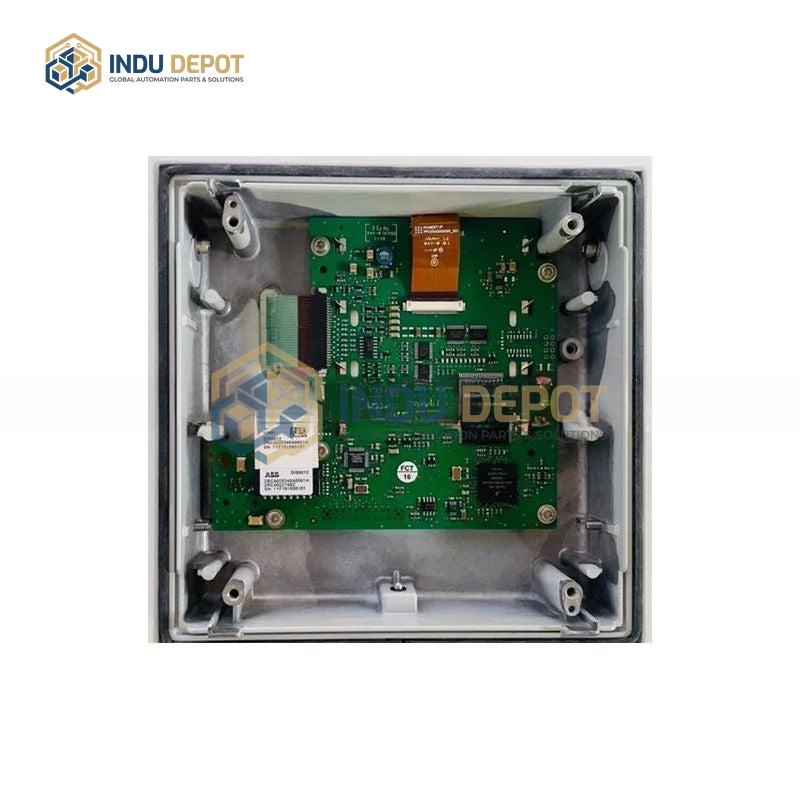

ABB RED615 with DIS0012 Display Unit
Description
ABB RED615 with DIS0012 Display Unit is an advanced feeder protection and control relay from ABB’s Relion product family, designed for modern power distribution systems. It integrates multi-function protection, precise measurement, condition monitoring, and flexible control, with seamless integration into substation automation or SCADA systems via advanced communication protocols to protect grid assets and improve power supply reliability.
| Specification | Value |
|---|---|
| Product Type | Feeder Protection and Control Relay |
| Rated Current Input | 1A or 5A (optional) |
| Rated Voltage Input | 100-120V or 200-240V (optional) |
| Communication Protocols | IEC 61850, Modbus TCP, DNP3.0, IEC 60870-5-103 |
| Operating Temperature | -25 to 70 degrees Celsius |
| Mounting Type | Embedded or panel mounting |
Key Features:
- Drawer-style design for easy installation and maintenance
- Supports underground and overhead cable fault detection, plus high impedance fault detection
- Continuous self-monitoring and automatic diagnostic functions
- Compact, detachable structure with support for multiple grounding methods
- Equipped with liquid crystal display and function keys for clear status viewing
Applications:
- Overcurrent and ground fault protection for feeders in power substations and industrial distribution networks
- Backup protection for transformers and other power equipment
- Use in cement, metallurgy, petrochemical, and automotive industry power systems
- Applicable to radial, loop, or network-type distribution networks with distributed generators
Related Models:
- REF615K (feeder protection dedicated)
- REF615D (transformer differential protection)
- REF615J (motor protection with start blocking)
- REF615M (multi-functional for various main wiring configurations)
