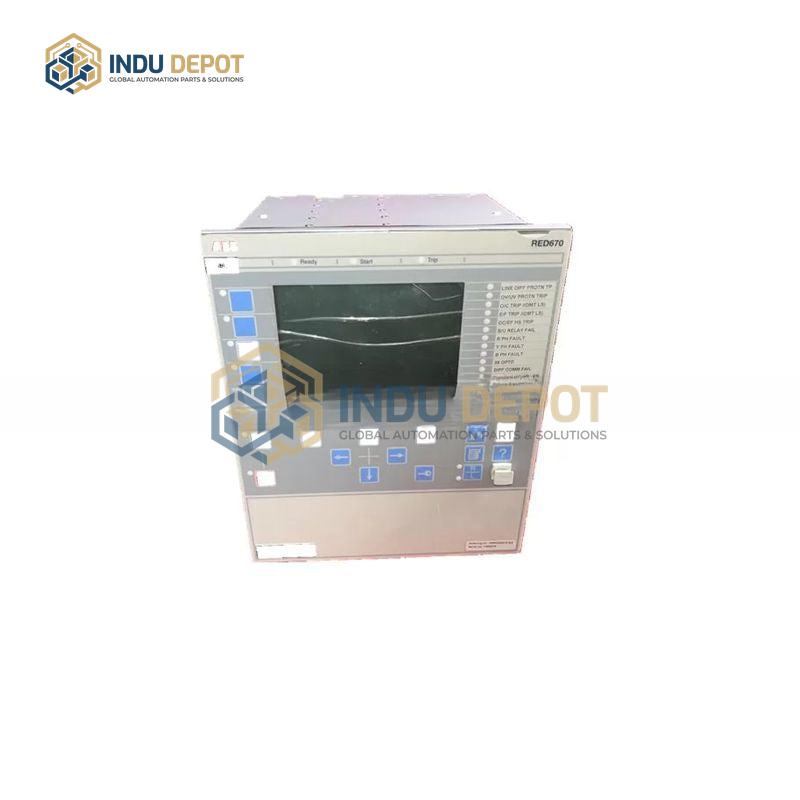

ABB RED670 Intelligent Electronic Device

Description

The ABB RED670 Intelligent Electronic Device (IED) is a multi-functional protection, monitoring, and control unit belonging to the ABB Relion®670 series, designed for overhead lines, cables, transformer feeders, generators, and transformer blocks. It integrates a comprehensive suite of protection functions, including line differential protection, overcurrent protection, overload protection, ground fault protection, high impedance differential protection (PDIFF), overfrequency protection, and underfrequency protection, to deliver robust electrical fault coverage for power systems.

Compatible with transmission systems of varying voltage classes, this IED features flexible configuration options to adapt to diverse application requirements. It supports multiple industrial communication protocols such as Modbus and Profibus, enabling seamless integration into remote network management systems for centralized monitoring and control. Its scalable hardware design allows for customized feature additions, including optional functions like automatic or manual synchronization checks, multi-breaker configurations, and automatic reclosing to enhance operational stability. The RED670 combines protection, control, and monitoring capabilities in a single unit, providing a unified solution to safeguard critical power infrastructure and ensure reliable system operation.
