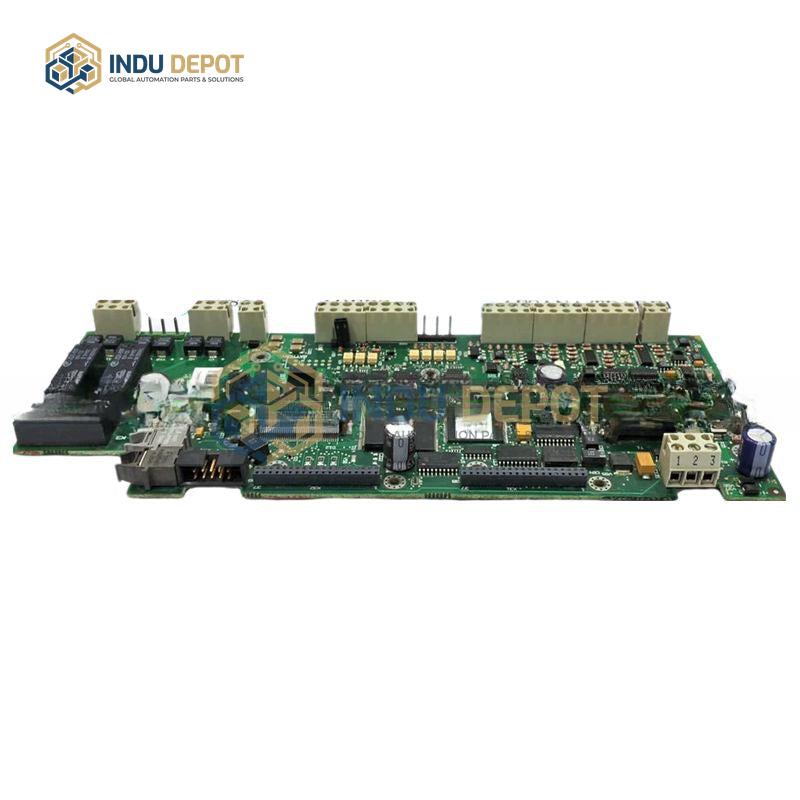

ABB RMIO-02C CPU Power Control Board
Description
ABB RMIO-02C CPU Power Control Board is a core control motherboard for ABB ACS800 and ACS600 series variable frequency drives, serving as the upgraded replacement for the RMIO-01C model. It acts as the central hub for signal processing, I/O management, communication, and control algorithm execution for connected drives.
| Specification | Value |
|---|---|
| Control Board Power Supply | 24V DC |
| Compatible Drive Main Circuit | Three-phase AC 320-510V |
| Control Modes | V/F, Vector Control, Direct Torque Control (DTC) |
| Control Accuracy | Speed ±0.01%, Torque ±3% |
| Dynamic Response | Less than 5ms |
| Communication Interfaces | PROFIBUS DP, Modbus RTU/TCP, EtherNet/IP, RS-485 |
| Operating Temperature Range | -20 to 60 degrees Celsius |
| MTBF | Over 100,000 hours |
Key Features:
- Factory original design for perfect compatibility with ACS800/600 series drives, enabling plug-and-use installation
- Supports multiple control algorithms to adapt to asynchronous and permanent magnet synchronous motors with high speed regulation precision
- Multi-channel digital/analog I/O configuration with encoder feedback support
- Rich industrial communication interfaces for seamless integration with PLC, upper computer, and robot systems
- Industrial-grade design for reliable operation in harsh working conditions
Applications:
- Control systems for fans, water pumps, conveyor belts, and compressors
- Industrial equipment in metallurgy, papermaking, cement production, and other heavy manufacturing sectors
- Replacement for faulty control boards causing communication errors, no output, or parameter write failures
Related Models:
- RMIO-01C
- RDCU-02C
- RDCU-12C
- RMIO-12C
- RMIO-11C
