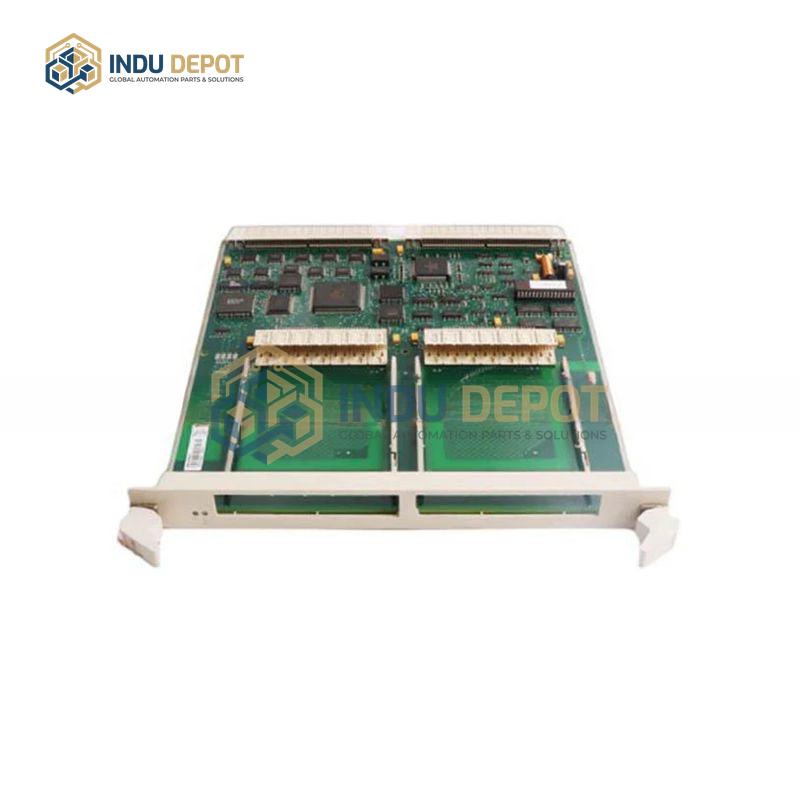

ABB SC520 Communication Module

Description

The ABB SC520 Communication Module encompasses multiple model variants with distinct specifications, tailored for diverse industrial automation needs. A common variant, 3BSE003816R1, functions as an I/O module rack for ABB Advant OCS and S100 I/O systems, providing a dedicated installation and connection platform for various I/O modules in industrial applications. It integrates core functions including power management, multi-protocol communication, and fault diagnostics. Key parameters for this model include dimensions of 240 mm x 40 mm x 150 mm, weight of 1.2 kg, aluminum alloy construction, IP65 protection rating, operating temperature range of -20 degrees Celsius to 60 degrees Celsius, 24 VDC power input, maximum 5 A power output, and communication interfaces supporting RS-232, RS-485, and Ethernet. It is used to build distributed control systems and enable SCADA system functionality. Other variants, such as SC520M 3BSE016237R1, serve as submodule carriers with an integrated local CPU, supporting MB300 and MB300E, measuring 291 mm x 30 mm x 300 mm and weighing 0.742 kg. Additional variants act as carriers for ABB AC800PEC series submodules, offering mechanical fixation and electrical connection, supporting up to 8 submodules, DIN rail mounting, and operating within -20 degrees Celsius to 60 degrees Celsius, with IP20 protection rating and 24 VDC compatible power input.
