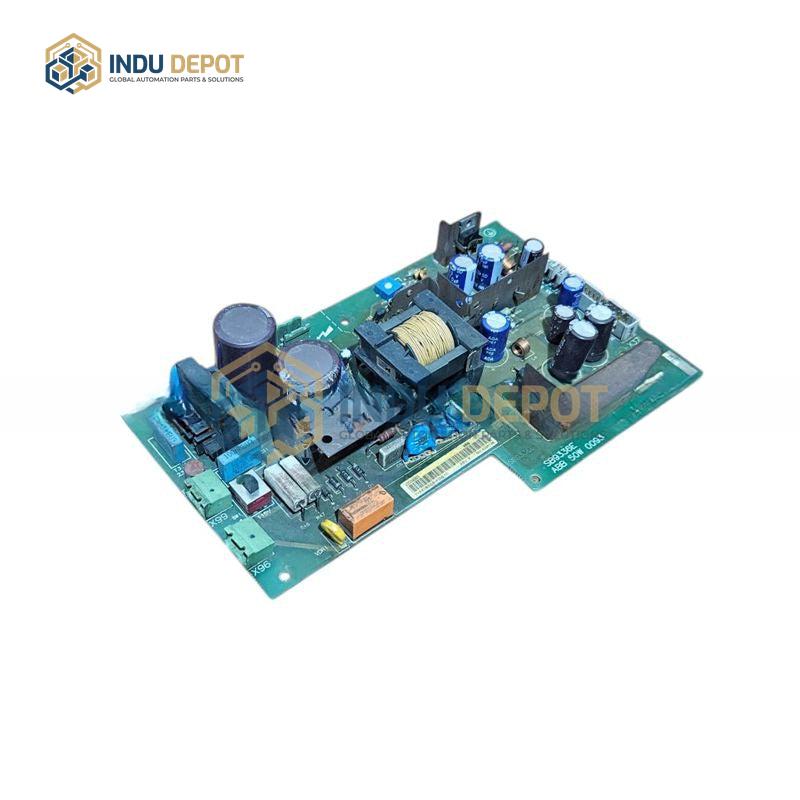

ABB SDCS-POW-1 Power Board Reliable Series for Industrial Drives
Description
ABB SDCS-POW-1C Power Board is a core power control module for industrial drives, designed to provide stable, efficient DC power conversion and protection for motor drive systems and production line equipment.
| Specification | Value |
|---|---|
| Input Voltage Range | Three-phase AC 380V-480V, 50/60Hz |
| Output Voltage Range | Three-phase DC 0V-500V, maximum current 200A |
| Output Voltage Fluctuation | Less than ±1% |
| Dimensions | 130mm (H) × 260mm (W) × 295mm (D) |
| Weight | Approximately 7.5 kilograms |
Key Features:
- Uses three-phase full-bridge rectification technology for high-efficiency AC to DC power conversion, reducing motor energy consumption by up to 12%
- Integrates soft start/soft stop function with trapezoidal current control algorithm to avoid mechanical shock during motor startup and braking
- Equipped with multiple protection mechanisms including overload, overvoltage, undervoltage, and overheat protection
- Compatible with ABB DCS500 digital controller and supports Profibus, Modbus field bus protocols
Applications:
- Air conditioning systems and elevator drive systems
- Water pump control and production line conveyor systems
- Industrial robot power supply and heavy manufacturing production lines
Related Models:
- SDCS-POW-4
- SDCS-CON-2
- SDCS-PIN-41
- APOW-01C
